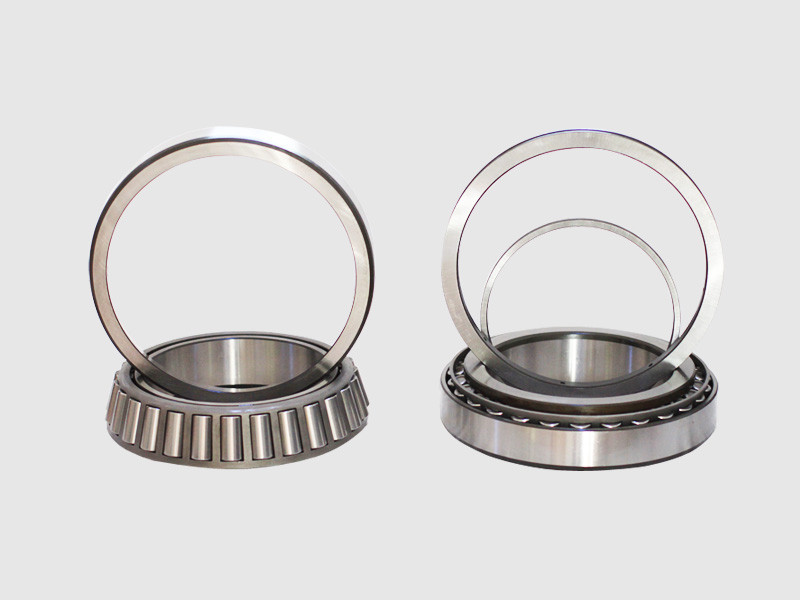

T7FC065 KOYO taper roller bearing,single row,metric series
KOYO T7FC065 details:
Bearing No. | T7FC065 | |
Boundary dimensions(mm) | d | 65 |
D | 130 | |
T | 37 | |
B | 33.5 | |
r(min) | 3 | |
r1(min) | 3 | |
Basic load ratings(kN) | Cr | 148 |
C0r | 211 | |
Limiting speeds(min-1) | Grease lub. | 2600 |
Oil lub | 3600 | |
Dimensions(mm) | C | 26 |
Load center | a(mm) | 44.4 |
Mounting dimensions(mm) | da(min) | 79 |
db(max) | 78 | |
Da(max) | 116 | |
Da(min) | 98 | |
Db(min) | 124 | |
Sa(min) | 4 | |
Sb(min) | 11 | |
ra(max) | 2.5 | |
rb(max) | 2.5 | |
Constant | e | 0.87 |
Axial load factors | Y1 | 0.69 |
Y0 | 0.38 | |
(Refer.)Mass(kg) | 2.17 |
we have this item in stock now.Please contact us for more detials:sales@unidebearing.com
