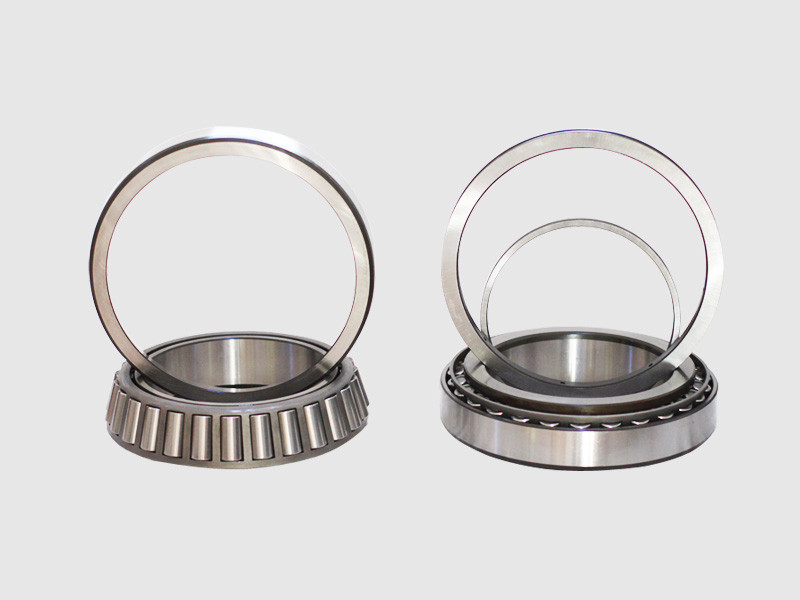

T2ED080 KOYO taper roller bearing,single row,metric series
KOYO T2ED080 details:
Bearing No. | T2ED080 | |
Boundary dimensions(mm) | d | 80 |
D | 145 | |
T | 46 | |
B | 45 | |
r(min) | 3 | |
r1(min) | 2.5 | |
Basic load ratings(kN) | Cr | 266 |
C0r | 381 | |
Limiting speeds(min-1) | Grease lub. | 2600 |
Oil lub | 3500 | |
Dimensions(mm) | C | 38 |
Load center | a(mm) | 32.7 |
Mounting dimensions(mm) | da(min) | 94 |
db(max) | 92 | |
Da(max) | 133 | |
Da(min) | 125 | |
Db(min) | 137 | |
Sa(min) | 7 | |
Sb(min) | 8 | |
ra(max) | 2.5 | |
rb(max) | 2 | |
Constant | e | 0.32 |
Axial load factors | Y1 | 1.88 |
Y0 | 1.03 | |
(Refer.)Mass(kg) | 3.2 |
we have this item in stock now.Please contact us for more detials:sales@unidebearing.com
