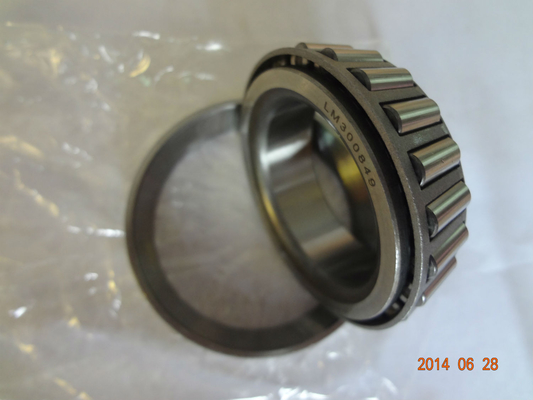

LM300849/LM300811 taper roller bearing,single row,inch series,type TS

  • LM300849/LM300811 taper roller bearing,single row,inch series,type TS
  • LM300849/LM300811 taper roller bearing,single row,inch series,type TS
  • LM300849/LM300811 taper roller bearing,single row,inch series,type TS
Brand Name TIMKEN,KOYO,NACHI,NSK,NEUTRAL
Model Number LM300849/LM300811
Minimum Order Quantity 5 pcs
Price ASK
Packaging Details Industrial standard
Delivery Time 3-5 days for stocks;within 15 days by order manufacturing
Payment Terms T/T;Western Union;Paypal
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Precision Rating P0;P6 Number Of Row Single Row
Leave a Message
Product Description

LM300849/LM300811 taper roller bearing,single row,inch series,type TS

LM300849/LM300811 bearing details:

LM300849/LM300811 taper roller bearing,single row,inch series,type TS 0 LM300849/LM300811 taper roller bearing,single row,inch series,type TS 1LM300849/LM300811 taper roller bearing,single row,inch series,type TS 2

Bearing Type TRB
Bearing Subtype TS

Cone (Inner) LM300849
Cup (Outer) LM300811

d - Bore 1.6137 in
D - Outer Diameter 2.6762 in
T - Width 0.689 in

C1 - Dynamic Radial Load Rating - 1 M revs 13300 lbf
C90 - Dynamic Radial Load Rating - 90 M revs 3440 lbf
Ca90 - Dynamic Axial Load Rating - 90 M revs 2050 lbf
C0 - Static Load Rating 14300 lbf
K = 0.39 / Tan (contact angle) 1.68
e = 1.5 * Tan (contact angle) 0.35
Y = 0.4 / Tan (contact angle) 1.72
Cg - Geometry constant for lubrication adjustment to bearing life 0.0698

B - Inner Ring Width 0.7087 in
R - Max Shaft Fillet Radius 0.14 in
db - Shaft Backing Shoulder Diameter 2.05 in
da - Shaft Backing Shoulder Diameter 1.79 in

Aa - Cone Back Face (BF) to Cage distance 0.02 in
Ab - Cone Front Face (FF) to Cage distance 0.05 in

C - Outer Ring Width 0.5315 in
r - Max Housing Fillet Radius 0.06 in
Db - Housing Backing Shoulder Diameter 2.40 in
Da - Housing Backing Shoulder Diameter 2.56 in
a - Effective Center Location -0.14 in

Assembly Weight 0.53 lb

we have LM300849/LM300811 in stock.Please contact us for more detials:sales@unidebearing.com

Bearing No.

dⅹDⅹT

Bearing No.

dⅹDⅹT



(mm)



(mm)

LM11749/10

17.462ⅹ39.878ⅹ13.834

TR0305A

34.988ⅹ59.974ⅹ15.875

LM11949/10

19.050ⅹ45.237ⅹ15.474

TR0305-C9

38.100ⅹ65.008ⅹ18.034

M12649/10

21.430ⅹ50.005ⅹ17.526

332541

38.000ⅹ63.000ⅹ17.000

LM12749/10

21.987ⅹ45.237ⅹ15.494

639154



LM12749/11

21.987ⅹ45.974ⅹ15.494

639297



L44643/10

25.400ⅹ50.292ⅹ14.224

50KW01

34.925ⅹ65.008ⅹ18.034

L44649/10

26.988ⅹ50.292ⅹ14.224

639174

35.000ⅹ59.975ⅹ15.875

L45449/10

29.000ⅹ50.292ⅹ14.224

639175

25.995ⅹ57.150ⅹ17.460

LM67048

31.250ⅹ59.131ⅹ15.875

639172

27.98ⅹ57.150ⅹ17.460

L68149/10

34.988ⅹ59.131ⅹ15.875

U399/U360L

39.688ⅹ73.025ⅹ19.395

L68149/11

34.988ⅹ59.975ⅹ15.875

U298-U261L

35.000ⅹ65.000ⅹ18.000

LM29748/10

38.100ⅹ65.008ⅹ18.034

28KW02g

28.000ⅹ52.000ⅹ15.800

LM29749/11

38.100ⅹ65.008ⅹ19.182

34W/51W

34.000ⅹ51.000ⅹ12.000

JL69349/10

38.100ⅹ63.000ⅹ17.000

28KW04g/28

28.000ⅹ50.292ⅹ14.000





KW01g



LM501349/14

41.275ⅹ73.431ⅹ19.558

28KWag5-28k

28.000ⅹ50.292ⅹ14.000





W01g



LM48548/10

34.925ⅹ65.088ⅹ18.034

305115

30.000ⅹ51.000ⅹ15.000

LM300849/11

40.988ⅹ67.975ⅹ17.500

264815

26.000ⅹ48.000ⅹ15.000

LM68145/11Z

34.988ⅹ59.975ⅹ15.875

11590/20

15.875ⅹ42.862ⅹ14.288

329013Q

29.000ⅹ50.292ⅹ14.224

28584/21

52.388ⅹ92.075ⅹ24.608

M84548/10

25.400ⅹ57.150ⅹ19.431

1788/31

45.230ⅹ79.985ⅹ19.842

18590/20

41.275ⅹ73.025ⅹ16.667

U399A/U365L

39.688ⅹ79.967ⅹ19.395

M88048/10

33.338ⅹ68.262ⅹ22.225

U497/U460L

45.000ⅹ80.000ⅹ20.218

15101/15245

25.400ⅹ62.000ⅹ19.050

15120/15245

30.213ⅹ62.000ⅹ19.050

15123/15245

31.750ⅹ62.000ⅹ18.161

LM501349/LM501310

41.275ⅹ73.431ⅹ19.558

LM102949/LM102910

45.242ⅹ73.431ⅹ19.558

LM603049/LM603012

45.242ⅹ77.788ⅹ21.430

JLM10498/JLM104910

50.000ⅹ82.000ⅹ21.500
