KOYO T7FC055 single row taper roller bearing,metric series

I'm Online Chat Now

KOYO T7FC055 single row taper roller bearing,metric series

China KOYO T7FC055 single row taper roller bearing,metric series supplier

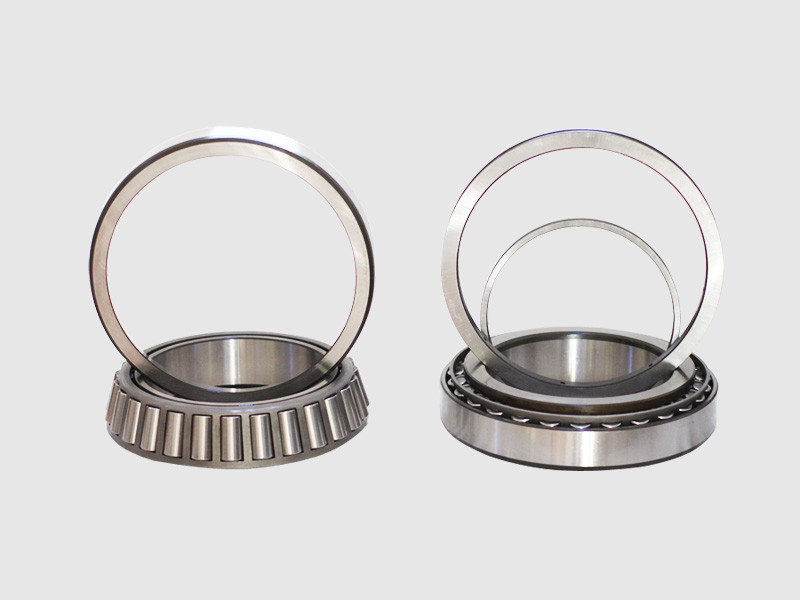

Large Image :  KOYO T7FC055 single row taper roller bearing,metric series

Product Details:

Brand Name: KOYO
Model Number: T7FC055

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: ASK
Packaging Details: Industrial standard
Delivery Time: 3-5 days for stocks;within 15 days by order manufacturing
Payment Terms: T/T;Western Union;Paypal
Contact Now
Detailed Product Description

T7FC055 KOYO taper roller bearing,single row,metric series

KOYO T7FC055 details:

KOYO T7FC055 single row taper roller bearing,metric series KOYO T7FC055 single row taper roller bearing,metric series



  Bearing No. T7FC055
Boundary dimensions(mm) d 55
D 115
T 34
B 31
r(min) 3
r1(min) 3
Basic load ratings(kN) Cr 129
C0r 164
Limiting speeds(min-1) Grease lub. 3000
Oil lub 4200
Dimensions(mm) C 23.5
Load center a(mm) 38.6
Mounting dimensions(mm) da(min) 69
db(max) 65
Da(max) 101
Da(min) 86
Db(min) 109
Sa(min) 4
Sb(min) 10.5
ra(max) 2.5
rb(max) 2.5
Constant e 0.87
Axial load factors Y1 0.69
Y0 0.38
(Refer.)Mass(kg)   1.59

we have this item in stock now.Please contact us for more detials:sales@unidebearing.com
