PDNB314 with 70mm shaft plummber block and flanged housing units

  • PDNB314 with 70mm shaft plummber block and flanged housing units
Place of Origin China
Model Number PDNB314
Minimum Order Quantity 2
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 25 days for order manufacture
Payment Terms T/T;Western Union;Paypal;L/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

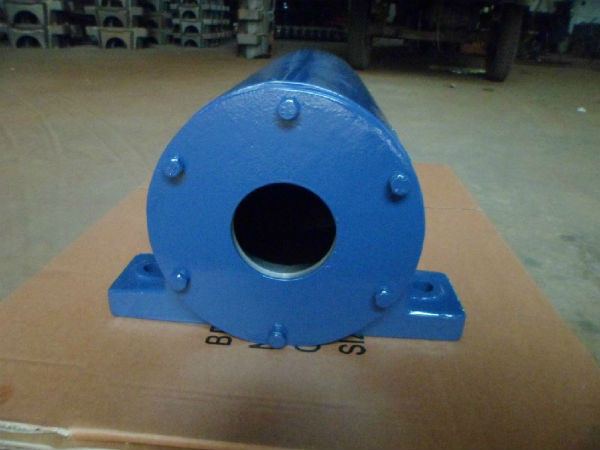

PDN series plummber block and flanged housing units PDNB 314

Appropriate bearing 2 x 6314

Housings Material:Cast Iron

The bearing arrangement for housings in the PDN series comprises:

►two single row deep groove ball bearings in the 62 series for housings in the PDN 2series

►two single row deep groove ball bearings in the 63 series for housings in the PDN 3 series

Order Information:

PD two-bearing housings

Housings in the PDN series are supplied with the following components:

►housing

►2 covers, including 8 or 12 hexagon head bolts and spring washers depending on size

►2 flinger rings

►1 wave spring washer(up to and including size 218 for housings in the PDN 2 series,and size 316 for housings

in the PDN 3 series)

►2 seals (V-ring seals for housings in the PDN 2series;V-ring seals and felt strips for housings in the PDN 3 series)

Shaft  Housing Bearings Shaft Wave spring Washer Spare Parts V-ring Felt Strip Unit
Diameter (mm)
25 PDN305 2x6305 VJ-PDNB 305 WF-62 25 VA R FS 190 PDNB305
30 PDN206 2x6206 VJ-PDNB 206 WF-62 30 VA R - PDNB206
PDN306 2x6306 VJ-PDNB 306 WF-72 30 VA R FS 190 PDNB306
35 PDN207 2x6207 VJ-PDNB 207 WF-72 35 VA R - PDNB207
PDN307 2x6307 VJ-PDNB 307 WF-80 35 VA R FS 190 PDNB307
40 PDN208 2x6208 VJ-PDNB 208 WF-80 40 VA R - PDNB208
PDN308 2x6308 VJ-PDNB 308 WF-90 40 VA R FS 190 PDNB308
45 PDN309 2x6309 VJ-PDNB 309 WF-100 45 VA R FS 190 PDNB309
50 PDN210 2x6210 VJ-PDNB 210 WF-90 50 VA R - PDNB210
PDN310 2x6310 VJ-PDNB 310 WF-110 50 VA R FS 190 PDNB310
55 PDN211 2x6211 VJ-PDNB 211 WF-100 55 VA R - PDNB211
PDN311 2x6311 VJ-PDNB 311 WF-120 55 VA R FS 260 PDNB311
60 PDN212 2x6212 VJ-PDNB 212 WF-110 60 VAR - PDNB212
PDN312 2x6312 VJ-PDNB 312 WF-130 60 VAR FS 260 PDNB312
65 PDN313 2x6313 VJ-PDNB 313 WF-140 65 VAR FS 260 PDNB313
70 PDN214 2x6214 VJ-PDNB 214 WF-125 70 VAR - PDNB214
PDN314 2x6314 VJ-PDNB 314 WF-150 70 VAR FS 330 PDNB314
75 PDN215 2x6215 VJ-PDNB 215 WF-130 75 VAR - PDNB215
PDN315 2x6315 VJ-PDNB 315 WF-160 75 VAR FS 330 PDNB315
80 PDN216 2x6216 VJ-PDNB 216 WF-140 80 VAR - PDNB216
PDN316 2x6316 VJ-PDNB 316 WF-170 80 VAR FS 330 PDNB316
85 PDN317 2x6317 VJ-PDNB 317 - 85 VAR FS 330 PDNB317
90 PDN218 2x6218 VJ-PDNB 218  WF-160 90 VAR - PDNB218
PDN318 2x6318 VJ-PDNB 318  - 90 VAR FS 370 PDNB318
95 PDN319 2x6319 VJ-PDNB319 - 95 VAR FS 370 PDNB319
100 PDN220 2x6220 VJ-PDNB 220 - 100 VAR - PDNB220
PDN320 2x6320 VJ-PDNB 320 - 100 VAR FS 460 PDNB320
110 PDN222 2x6222 VJ-PDNB 222 - 110 VAR - PDNB222
PDN322 3x6322 VJ-PDNB 322 - 110 VAR FS 460 PDNB322
120 PDN224 2x6224 VJ-PDNB 224 - 120 VAR - PDNB224
PDN324 2x6324 VJ-PDNB 324 -  120 VAR FS 460 PDNB324
