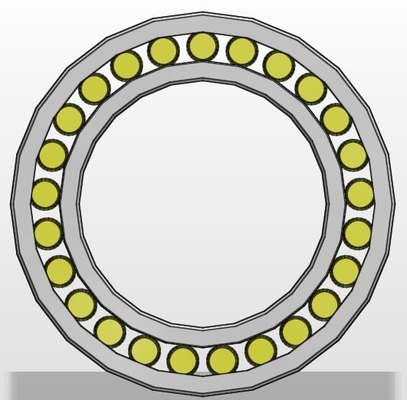

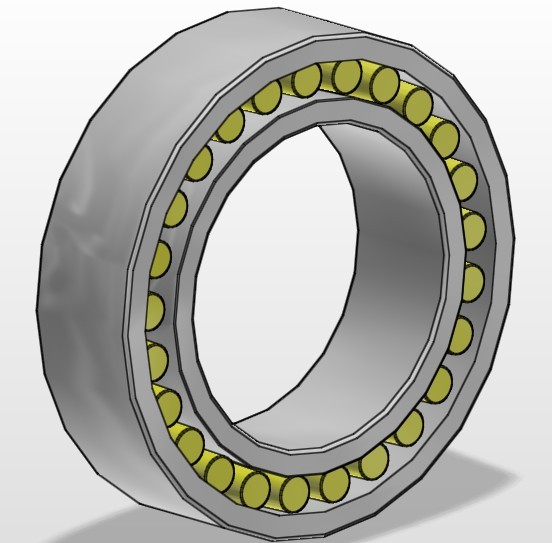

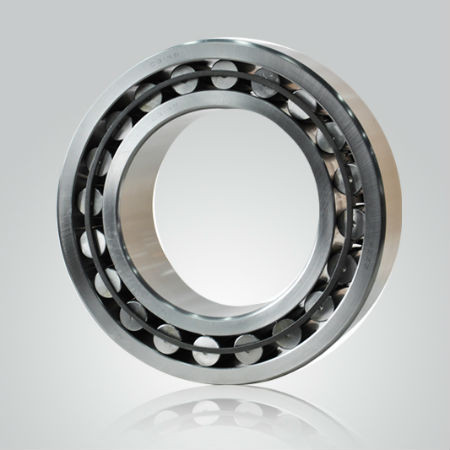

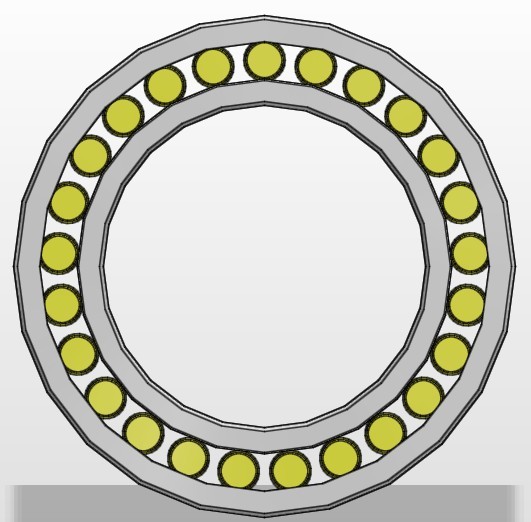

xC3036 CARB Toroidal Roller Bearing For Steel Plant
Bearing Name | C3036 CARB Bearings |
Bearing Model | C3036 |
Bore Structure | Cylindrical |
Tapered Bore | C3036K |
d | 180 mm |
D | 280 mm |
B | 74 mm |
Dynamic(C) | 880 kN |
Static(Co) | 1340 kN |
Weight | 16.5 kg |
Cages
*an injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred, designation suffix TN9
*a pressed window-type steel cage, roller centred, no designation suffix
*a machined window-type brass cage, roller centred, designation suffix M
*a two-piece machined brass cage, inner ring centred, designation suffix MB
Main application areas
• Steelmaking and rolling mills• Conveyors and roller beds• Paper machines• Fans, blowers, pumps• Crushers• Gearboxes of all types• Textile machines• Food and beverage processing machines• Agricultural machinery• Vibrating screens
Designation Suffixes
C2-- Radial internal clearance smaller than Normal
C3-- Radial internal clearance larger than Normal
C4-- Radial internal clearance larger than C3
C5-- Radial internal clearance larger than C4
CS5-- Sheet steel reinforced contact seal of hydrogenated acrylonitrile-butadiene rubber (HNBR) on one side of the bearing
2CS5-- CS5 contact seal on both sides of the bearing. Free space in the bearing filled between 70 and 100% with a high temperature grease.
HA3-- Case-hardened inner ring
K-- Tapered bore, taper 1:12
K30-- Tapered bore, taper 1:30
M-- Machined window-type brass cage, roller centred
MB-- Two-piece machined brass cage, inner ring centred
TN9-- Injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred
V-- Full complement of rollers (no cage)
VE240-- Bearing modified for greater axial displacement
VG114-- Surface hardened steel cage, roller centred
CARB Bearings drawing:
CARB Torodial Bearings with cages, Cylindrical bore and Taper bore( K) | |||||||||
ITEM | Principal Dimensions | Basic Load Rating | Fatigue Load Limit | Speed Ratings | Mass | ||||
Dynamic | Static | Reference Speed | Limit Speed | ||||||
CARB Bearing | d | D | B | C | C0 | Pu | |||
mm | kN | kN | r/min | kg | |||||
25 | 52 | 18 | 44 | 40 | 4,55 | 13000 | 18000 | 0,17 | |
C 2206 TN9 | 30 | 62 | 20 | 69,5 | 62 | 7,2 | 11000 | 15000 | 0,27 |
C 2207 TN9 | 35 | 72 | 23 | 83 | 80 | 9,5 | 9500 | 13000 | 0,43 |
C 2208 TN9 | 40 | 80 | 23 | 90 | 86,5 | 10,2 | 8000 | 11000 | 0,50 |
C 2209 TN9 | 45 | 85 | 23 | 93 | 93 | 10,8 | 8000 | 11000 | 0,55 |
C 4010 TN9 | 50 | 80 | 30 | 116 | 140 | 16 | 5000 | 7500 | 0,55 |
C 2210 TN9 | 50 | 90 | 23 | 98 | 100 | 11,8 | 7000 | 9500 | 0,59 |
C 2211 TN9 | 55 | 100 | 25 | 116 | 114 | 13,4 | 6700 | 9000 | 0,79 |
C 2212 TN9 | 60 | 110 | 28 | 143 | 156 | 18,3 | 5600 | 7500 | 1,10 |
C 2213 TN9 | 65 | 120 | 31 | 180 | 180 | 21,2 | 5300 | 7500 | 1,40 |
C 2214 TN9 | 70 | 125 | 31 | 186 | 196 | 23,2 | 5000 | 7000 | 1,45 |
C 2314 | 70 | 150 | 51 | 405 | 430 | 49 | 3800 | 5000 | 4,25 |
C 2314/C4VG114 | 70 | 150 | 51 | 405 | 430 | 49 | 3800 | 5000 | 4,25 |
C 2215 | 75 | 130 | 31 | 196 | 208 | 25,5 | 4800 | 6700 | 1,60 |
C 2315 | 75 | 160 | 55 | 425 | 465 | 52 | 3600 | 4800 | 5,20 |
C 2315/C4VG114 | 75 | 160 | 55 | 425 | 465 | 52 | 3600 | 4800 | 5,20 |
C 2216 | 80 | 140 | 33 | 220 | 250 | 28,5 | 4500 | 6000 | 2,00 |
C 2316 | 80 | 170 | 58 | 510 | 550 | 61 | 3400 | 4500 | 6,20 |
C 2316/C4VG114 | 80 | 170 | 58 | 510 | 550 | 61 | 3400 | 4500 | 6,20 |
C 2217 | 85 | 150 | 36 | 275 | 320 | 36,5 | 4300 | 5600 | 2,60 |
C 2317 | 85 | 180 | 60 | 540 | 600 | 65,5 | 3200 | 4300 | 7,30 |
C 2317/C4VG114 | 85 | 180 | 60 | 540 | 600 | 65,5 | 3200 | 4300 | 7,30 |
C 2218 | 90 | 160 | 40 | 325 | 380 | 42,5 | 3800 | 5300 | 3,30 |
C 2318 | 90 | 190 | 64 | 610 | 695 | 73,5 | 2800 | 4000 | 8,50 |
C 2318/C4VG114 | 90 | 190 | 64 | 610 | 695 | 73,5 | 2800 | 4000 | 8,50 |
C 2219 | 95 | 170 | 43 | 360 | 400 | 44 | 3800 | 5000 | 4,00 |
C 2319 | 95 | 200 | 67 | 610 | 695 | 73,5 | 2800 | 4000 | 10,0 |
C 2319/C4VG114 | 95 | 200 | 67 | 610 | 695 | 73,5 | 2800 | 4000 | 10,0 |
C 3120 | 100 | 165 | 52 | 415 | 540 | 58,5 | 3200 | 4300 | 4,40 |
C 2220 | 100 | 180 | 46 | 415 | 465 | 47,5 | 3600 | 4800 | 4,85 |
C 2320 | 100 | 215 | 73 | 800 | 880 | 91,5 | 2600 | 3600 | 12,5 |
C 2320/C4VG114 | 100 | 215 | 73 | 800 | 880 | 91,5 | 2600 | 3600 | 12,5 |
C 3022 | 110 | 170 | 45 | 355 | 480 | 51 | 3200 | 4500 | 3,50 |
C 2222 | 110 | 200 | 53 | 530 | 620 | 64 | 3200 | 4300 | 6,90 |
C 3024 | 120 | 180 | 46 | 375 | 530 | 55 | 3000 | 4000 | 3,90 |
C 2224 | 120 | 215 | 58 | 610 | 710 | 72 | 3000 | 4000 | 8,60 |
C 3224 | 120 | 215 | 76 | 750 | 980 | 98 | 2400 | 3200 | 11,5 |
C 3026 | 130 | 200 | 52 | 390 | 585 | 58,5 | 2800 | 3800 | 5,90 |
C 4026 | 130 | 200 | 69 | 620 | 930 | 91,5 | 1900 | 2800 | 7,84 |
C 2226 | 130 | 230 | 64 | 735 | 930 | 93 | 2800 | 3800 | 11,0 |
C 3028 | 140 | 210 | 53 | 490 | 735 | 72 | 2600 | 3400 | 6,30 |
C 2228 | 140 | 250 | 68 | 830 | 1060 | 102 | 2400 | 3400 | 13,8 |
C 3030 MB | 150 | 225 | 56 | 540 | 850 | 83 | 2400 | 3200 | 8,30 |
C 3130 | 150 | 250 | 80 | 880 | 1290 | 122 | 2000 | 2800 | 15,0 |
C 2230 | 150 | 270 | 73 | 980 | 1220 | 116 | 2400 | 3200 | 17,5 |
C 3032 | 160 | 240 | 60 | 600 | 980 | 93 | 2200 | 3000 | 9,60 |
C 4032 | 160 | 240 | 80 | 795 | 1160 | 110 | 1600 | 2400 | 12,3 |
C 3132 | 160 | 270 | 86 | 1000 | 1400 | 132 | 2000 | 2600 | 20,0 |
C 3232 | 160 | 290 | 104 | 1370 | 1830 | 170 | 1700 | 2400 | 28,5 |
C 3034 | 170 | 260 | 67 | 750 | 1160 | 108 | 2000 | 2800 | 12,5 |
C 3134 | 170 | 280 | 88 | 1040 | 1460 | 137 | 1900 | 2600 | 21,0 |
C 2234 | 170 | 310 | 86 | 1270 | 1630 | 150 | 2000 | 2600 | 28,0 |
C 3036 | 180 | 280 | 74 | 880 | 1340 | 125 | 1900 | 2600 | 16,5 |
C 3136 | 180 | 300 | 96 | 1250 | 1730 | 156 | 1800 | 2400 | 26,0 |
C 3236 | 180 | 320 | 112 | 1530 | 2200 | 196 | 1500 | 2000 | 37,0 |
C 3038 | 190 | 290 | 75 | 930 | 1460 | 132 | 1800 | 2400 | 17,5 |
C 3138 | 190 | 320 | 104 | 1530 | 2200 | 196 | 1600 | 2200 | 33,5 |
C 2238 | 190 | 340 | 92 | 1370 | 1730 | 156 | 1800 | 2400 | 34,0 |
C 3040 | 200 | 310 | 82 | 1120 | 1730 | 153 | 1700 | 2400 | 22,0 |
C 3140 | 200 | 340 | 112 | 1600 | 2320 | 204 | 1500 | 2000 | 40,0 |
C 3044 | 220 | 340 | 90 | 1320 | 2040 | 176 | 1600 | 2200 | 29,0 |
C 3144 | 220 | 370 | 120 | 1900 | 2900 | 245 | 1400 | 1900 | 51,0 |
C 2244 | 220 | 400 | 108 | 2000 | 2500 | 216 | 1500 | 2000 | 56,5 |
C 3048 | 240 | 360 | 92 | 1340 | 2160 | 180 | 1400 | 2000 | 31,5 |
C 3148 | 240 | 400 | 128 | 2320 | 3450 | 285 | 1300 | 1700 | 63,0 |
C 3052 | 260 | 400 | 104 | 1760 | 2850 | 232 | 1300 | 1800 | 46,0 |
C 3152 | 260 | 440 | 144 | 2650 | 4050 | 325 | 1100 | 1500 | 87,0 |
C 3056 | 280 | 420 | 106 | 1860 | 3100 | 250 | 1200 | 1600 | 50,0 |
C 3156 | 280 | 460 | 146 | 2850 | 4500 | 355 | 1100 | 1400 | 93,0 |
C 3060 M | 300 | 460 | 118 | 2160 | 3750 | 290 | 1100 | 1500 | 71,0 |
C 4060 M | 300 | 460 | 160 | 2900 | 4900 | 380 | 850 | 1200 | 95,0 |
C 3160 | 300 | 500 | 160 | 3250 | 5200 | 400 | 1000 | 1300 | 120 |
C 3064 M | 320 | 480 | 121 | 2280 | 4000 | 310 | 1000 | 1400 | 76,5 |
C 3164 M | 320 | 540 | 176 | 4150 | 6300 | 480 | 950 | 1300 | 160 |
C 3068 M | 340 | 520 | 133 | 2900 | 5000 | 375 | 950 | 1300 | 100 |
C 3168 M | 340 | 580 | 190 | 4900 | 7500 | 560 | 850 | 1200 | 205 |
C 3972 M | 360 | 480 | 90 | 1760 | 3250 | 250 | 1000 | 1400 | 44,0 |
C 3072 M | 360 | 540 | 134 | 2900 | 5000 | 375 | 900 | 1200 | 105 |
C 3172 M | 360 | 600 | 192 | 5000 | 8000 | 585 | 800 | 1100 | 215 |
C 3976 MB | 380 | 520 | 106 | 2120 | 4000 | 300 | 950 | 1300 | 65,5 |
C 3076 M | 380 | 560 | 135 | 3000 | 5200 | 390 | 900 | 1200 | 110 |
C 3176 MB | 380 | 620 | 194 | 4400 | 7200 | 520 | 750 | 1000 | 243 |
C 3980 MB | 400 | 540 | 106 | 2160 | 4150 | 305 | 900 | 1300 | 69,0 |
C 3080 M | 400 | 600 | 148 | 3650 | 6200 | 450 | 800 | 1100 | 140 |
C 3180 MB | 400 | 650 | 200 | 5000 | 8650 | 610 | 700 | 950 | 275 |
