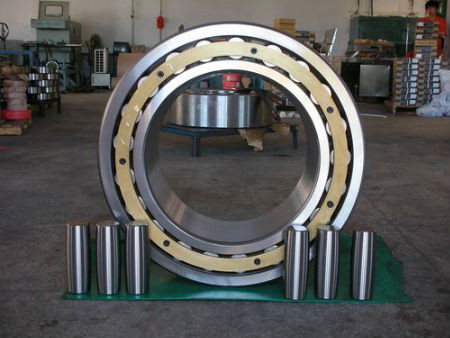

C3080M CARB toroidal roller bearings cylindrical and tapered bore
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xC3080M CARB Toroidal Roller Bearing datasheet:
Bearing Name | C3080M CARB Bearings |
Bearing Model | C3080M |
Bore Structure | Cylindrical |
Tapered Bore | C3080KM |
d | 400 mm |
D | 600 mm |
B | 148 mm |
Dynamic(C) | 3650 kN |
Static(Co) | 5200 kN |
Weight | 140 kg |
Cages
*an injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred, designation suffix TN9
*a pressed window-type steel cage, roller centred, no designation suffix
*a machined window-type brass cage, roller centred, designation suffix M
*a two-piece machined brass cage, inner ring centred, designation suffix MB
Main application areas
• Steelmaking and rolling mills• Conveyors and roller beds• Paper machines• Fans, blowers, pumps• Crushers• Gearboxes of all types• Textile machines• Food and beverage processing machines• Agricultural machinery• Vibrating screens
Designation Suffixes
C2-- Radial internal clearance smaller than Normal
C3-- Radial internal clearance larger than Normal
C4-- Radial internal clearance larger than C3
C5-- Radial internal clearance larger than C4
CS5-- Sheet steel reinforced contact seal of hydrogenated acrylonitrile-butadiene rubber (HNBR) on one side of the bearing
2CS5-- CS5 contact seal on both sides of the bearing. Free space in the bearing filled between 70 and 100% with a high temperature grease.
HA3-- Case-hardened inner ring
K-- Tapered bore, taper 1:12
K30-- Tapered bore, taper 1:30
M-- Machined window-type brass cage, roller centred
MB-- Two-piece machined brass cage, inner ring centred
TN9-- Injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred
V-- Full complement of rollers (no cage)
VE240-- Bearing modified for greater axial displacement
VG114-- Surface hardened steel cage, roller centred
CARB Bearings drawing:
