C3184M CARB toroidal roller bearings cylindrical and tapered bore

  • C3184M CARB toroidal roller bearings cylindrical and tapered bore
Place of Origin China
Certification ISO9001
Model Number C3184M
Minimum Order Quantity 1
Packaging Details Industrial/Customized
Delivery Time 3-5 days in stock;within 20 days order manufacturing
Payment Terms T/T;Western Union;Paypal
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

C3184M CARB Toroidal Roller Bearing datasheet:

Bearing Name C3184M CARB Bearings
Bearing Model C3184M
Bore Structure Cylindrical
Tapered Bore C3184KM
d 420 mm
D 700 mm
B 224 mm
Dynamic(C) 6000 kN
Static(Co) 10400 kN
Weight 340 kg

Cages

*an injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred, designation suffix TN9

*a pressed window-type steel cage, roller centred, no designation suffix

*a machined window-type brass cage, roller centred, designation suffix M

*a two-piece machined brass cage, inner ring centred, designation suffix MB

Main application areas

• Steelmaking and rolling mills• Conveyors and roller beds• Paper machines• Fans, blowers, pumps• Crushers• Gearboxes of all types• Textile machines• Food and beverage processing machines• Agricultural machinery• Vibrating screens

Designation Suffixes

C2-- Radial internal clearance smaller than Normal

C3-- Radial internal clearance larger than Normal

C4-- Radial internal clearance larger than C3

C5-- Radial internal clearance larger than C4

CS5-- Sheet steel reinforced contact seal of hydrogenated acrylonitrile-butadiene rubber (HNBR) on one side of the bearing

2CS5-- CS5 contact seal on both sides of the bearing. Free space in the bearing filled between 70 and 100% with a high temperature grease.

HA3-- Case-hardened inner ring

K-- Tapered bore, taper 1:12

K30-- Tapered bore, taper 1:30

M-- Machined window-type brass cage, roller centred

MB-- Two-piece machined brass cage, inner ring centred

TN9-- Injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred

V-- Full complement of rollers (no cage)

VE240-- Bearing modified for greater axial displacement

VG114-- Surface hardened steel cage, roller centred

CARB Bearings drawing:

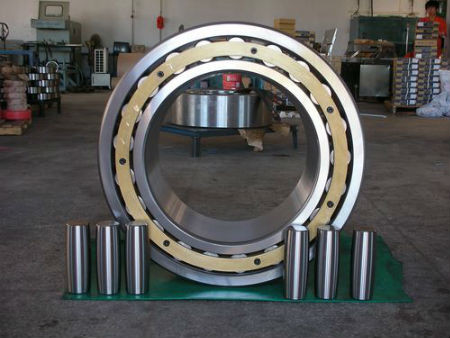

C3184M CARB toroidal roller bearings cylindrical and tapered bore 0

C3184M CARB toroidal roller bearings cylindrical and tapered bore 1

C3184M CARB toroidal roller bearings cylindrical and tapered bore 2 C3184M CARB toroidal roller bearings cylindrical and tapered bore 3
