ZARN2052-TV ball screw support bearings ZARN series

I'm Online Chat Now

ZARN2052-TV ball screw support bearings ZARN series

China ZARN2052-TV ball screw support bearings ZARN series supplier

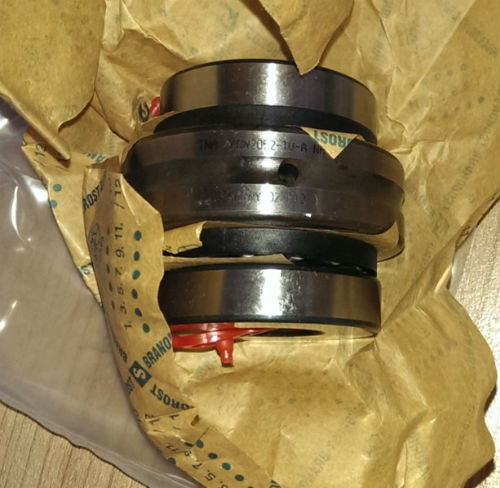

Large Image :  ZARN2052-TV ball screw support bearings ZARN series

Product Details:

Place of Origin: China
Certification: ISO9001
Model Number: ZARN2052-TV

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: ASK
Packaging Details: Industrial packing or customer's request
Delivery Time: within 3days for stock number;25days for order manufacture
Payment Terms: T/T;Western Union;Paypal;L/C
Contact Now
Detailed Product Description



Bearing No. ZARN2052 TV
Bearing Type: Needle roller/axial cylindrical roller bearings
Internal Clearance: C2
Dimension(mm) d 20
D 52
H 46
Approx.weight(kg) 0.41
TV: Cage made from glass fibre reinforced polyamide66
ZARN...L: an extended and stepped shaft locating washer

ZARN2052-TV ball screw support bearings ZARN series                  ZARN2052-TV ball screw support bearings ZARN series

Designation Designation Dimensions
d D H
    mm
ZARN1545-TN ZARN1545-L-TN 15 45 40
ZARN1747-TN ZARN1547-L-TN 17 47 43
ZARN2052-TN ZARN2052-L-TN 20 52 46
ZARN2062-TN ZARN2062-L-TN 20 62 60
ZARN2557-TN ZARN2557-L-TN 25 57 50
ZARN2572-TN ZARN2572-L-TN 25 72 60
ZARN3062-TN ZARN3062-L-TN 30 62 50
ZARN3080-TN ZARN3080-L-TN 30 80 66
ZARN3570-TN ZARN3570-L-TN 35 70 54
ZARN3585-TN ZARN3585-L-TN 35 85 66
ZARN4075-TN ZARN4075-L-TN 40 75 54
ZARN4090-TN ZARN4090-L-TN 40 90 75
ZARN4580-TN ZARN4580-L-TN 45 80 60
ZARN45105-TN ZARN45105-L-TN 45 105 82
ZARN5090-TN ZARN5090-L-TN 50 90 60
ZARN50110-TN ZARN50110-L-TN 50 110 82
ZARN55115-TN ZARN55115-L-TN 55 115 82
ZARN60120-TN ZARN60120-L-TN 60 120 82
ZARN65125-TN ZARN65125-L-TN 65 125 82
ZARN70130-TN ZARN70130-L-TN 70 130 82
ZARN75155-TN ZARN75155-L-TN 75 155 100
ZARN90180-TN ZARN90180-L-TN 90 180 110
