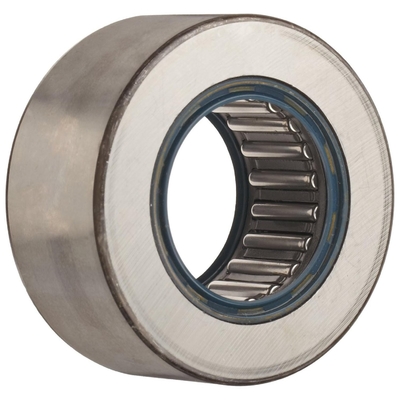

SRF45 SS Cam Follower,Sealed Caged Roller Follower

  • SRF45 SS Cam Follower,Sealed Caged Roller Follower
  • SRF45 SS Cam Follower,Sealed Caged Roller Follower
Model Number SRF45 SS
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 20 days for order manufacture
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 30000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Seals Type Sealed Number Of Row Single Row
Leave a Message
Product Description

SRF45 SS Cam Follower,Sealed Caged Roller Follower

Type:Yoke

Bearing Surface:Straight

Design Units:Inch

Specifications:

Part Number: SRF45 SS
Without Seals


D. Max: 2.250
Inside Diameter Nominal: 1 1/4
Corner Radius: 0.08
Approx Weight [lbs]: 0.580
Matching Inner Rings: IR 7234
Critical Angle [deg] 2: 35.6
Speed Limit [rpm] 3: 4300
Roller D Min: 2.249
Roller B Min +.000/-.005: 0.995
Inside Dia. Min: 1.2510
Inside Dia. Max: 1.2519
Bearing Dynamic Capacity C [lbf]: 7800
Bearing Static Capacity Co [lbf] 1: 13900
Track Capacity at 40 Rc [lbf]: 5800
Max: 1.2500
Min: 1.2495

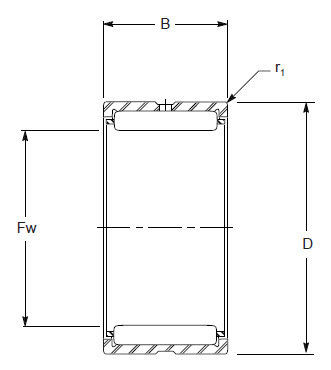

Part # Shaft O D B
SRF 20 0.5 1 0.495
SRF 25 0.625 1.25 0.62
SRF 30 0.75 1.5 0.745
SRF 35 0.875 1.75 0.745
SRF 40 1 2 0.995
SRF 45 1.25 2.25 0.995
SRF 50 1.37 2.5 0.995
SRF 55 1.5 2.75 1.245
SRF 60 1.625 3 1.245
SRF 65 1.75 3.25 1.245
SRF 70 1.875 3.5 1.245
SRF 75 2 3.75 1.245
SRF 80 2.25 4 1.245
SRF 20 SS 0.5 1 0.495
SRF 25 SS 0.625 1.25 0.62
SRF 30 SS 0.75 1.5 0.745
SRF 35 SS 0.875 1.75 0.745
SRF 40 SS 1 2 0.995
SRF 45 SS 1.25 2.25 0.995
SRF 50 SS 1.37 2.5 0.995
SRF 55 SS 1.5 2.75 1.245
