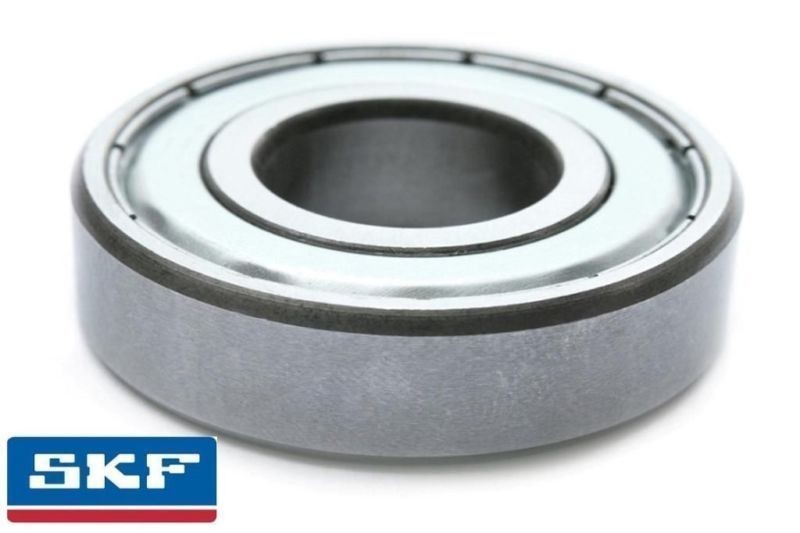

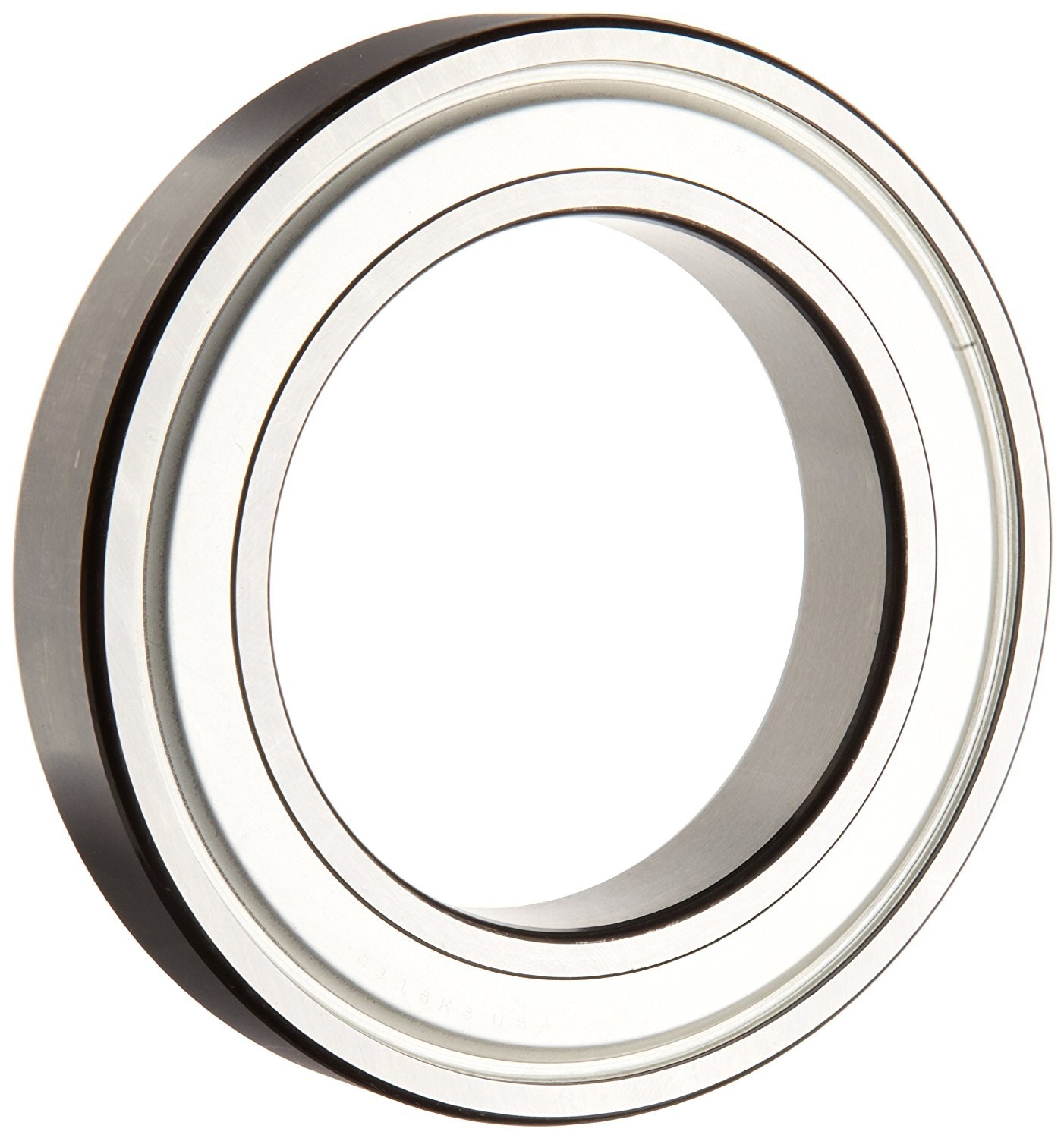

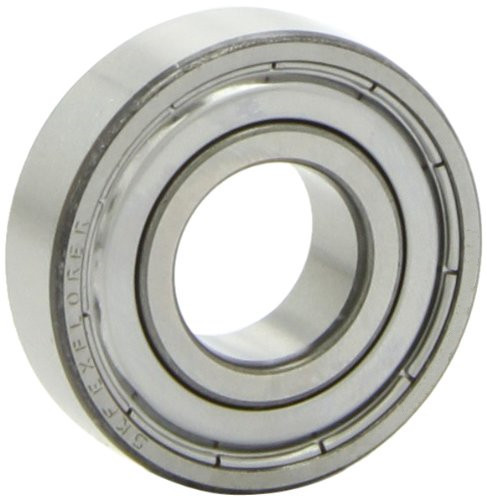

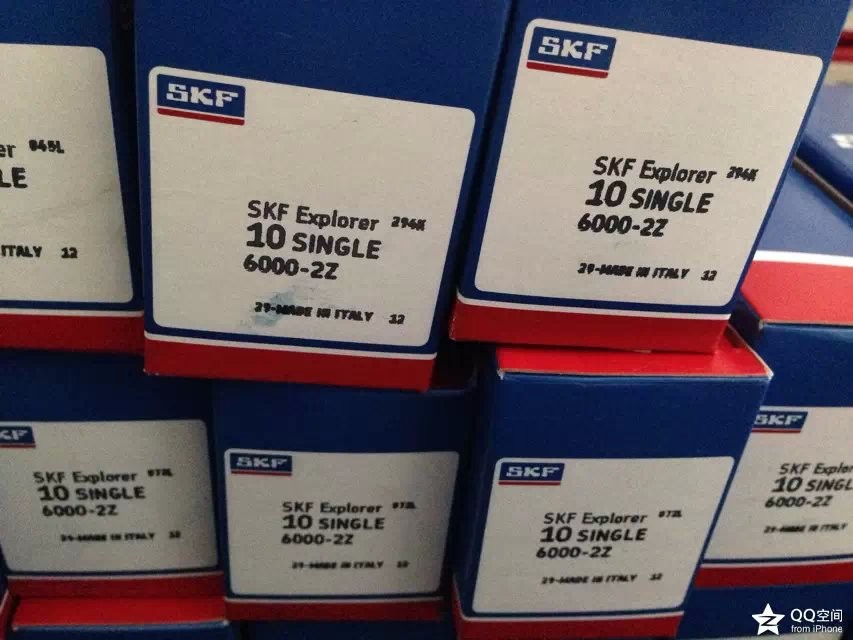

6000-2Z deep groove ball bearings,double shield,steel cage,normal clearance

  • 6000-2Z deep groove ball bearings,double shield,steel cage,normal clearance
  • 6000-2Z deep groove ball bearings,double shield,steel cage,normal clearance
  • 6000-2Z deep groove ball bearings,double shield,steel cage,normal clearance
  • 6000-2Z deep groove ball bearings,double shield,steel cage,normal clearance
Place of Origin Italy
Model Number 6000-2Z
Minimum Order Quantity 10 pcs
Price ASK
Packaging Details standard
Delivery Time 1-3 days
Payment Terms T/T, Western Union
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

6000-2Z

Explorer

Dimensions



  6000-2Z deep groove ball bearings,double shield,steel cage,normal clearance 0

d   10 mm
D   26 mm
B   8 mm
d1 ≈ 14.8 mm
D2 ≈ 22.6 mm
r1,2 min. 0.3 mm
Abutment dimensions
6000-2Z deep groove ball bearings,double shield,steel cage,normal clearance 1
da min. 12 mm
da max. 14.7 mm
Da max. 24 mm
ra max. 0.3 mm
Calculation data
Basic dynamic load rating C   4.75 kN
Basic static load rating C0   1.96 kN
Fatigue load limit Pu   0.083 kN
Reference speed     67000 r/min
Limiting speed     34000 r/min
Calculation factor kr   0.025
Calculation factor f0   12
Mass
Mass bearing     0.02 kg
