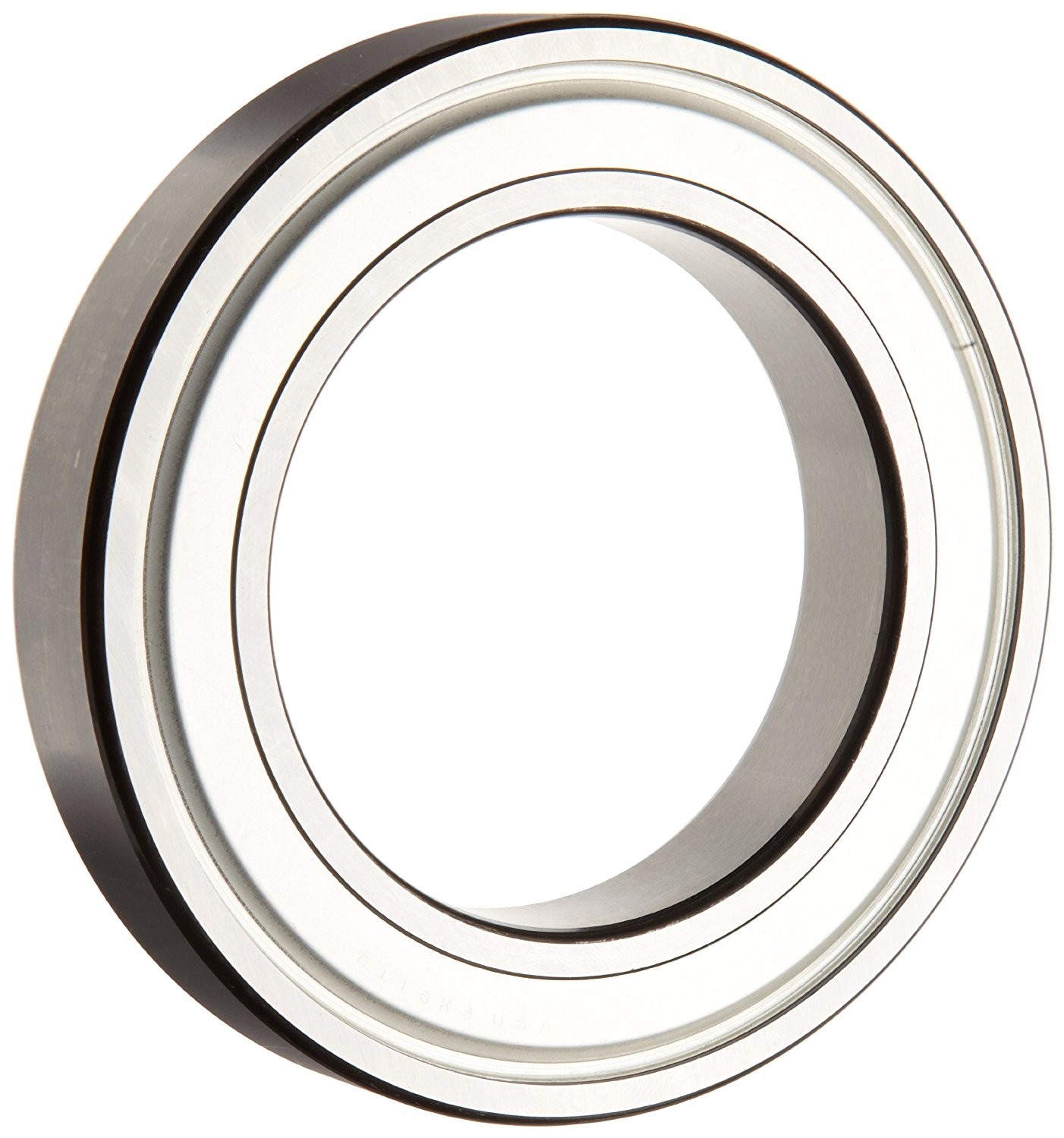

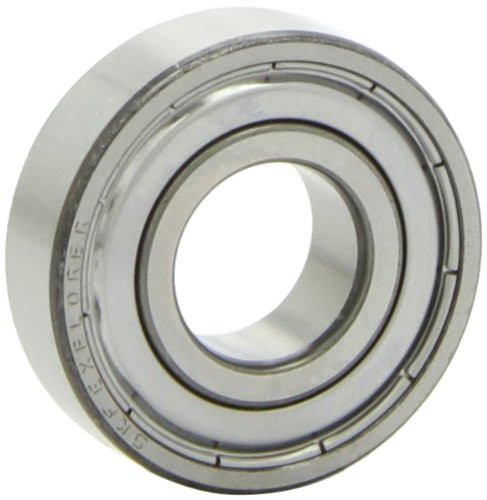

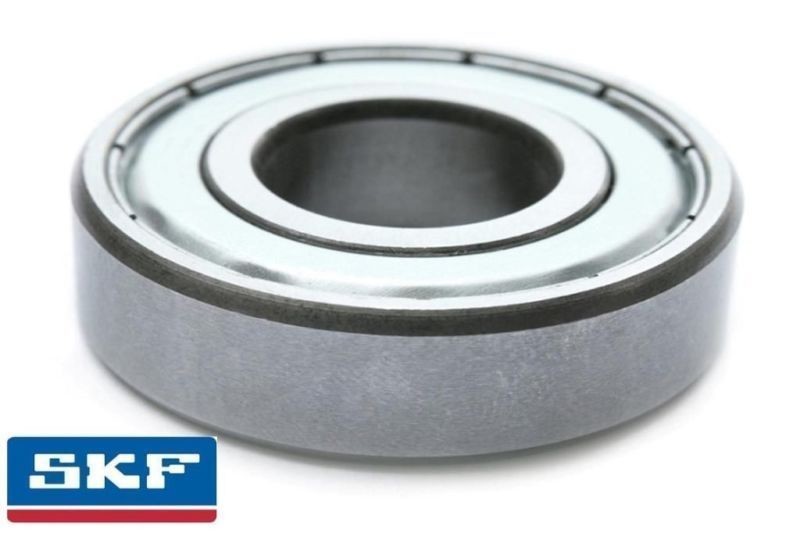

6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance

  • 6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance
  • 6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance
  • 6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance
  • 6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance
Place of Origin Italy
Model Number 6001-2Z
Minimum Order Quantity 10 pcs
Price ASK
Packaging Details standard
Delivery Time 1-3 days
Payment Terms T/T, Western Union
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

6001-2Z

6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance 0 6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance 1

Explorer

Dimensions
6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance 2
d   12 mm
D   28 mm
B   8 mm
d1 ≈ 17 mm
D2 ≈ 24.72 mm
r1,2 min. 0.3 mm
Abutment dimensions
6001-2Z deep groove ball bearings,double shield,steel cage,normal clearance 3
da min. 14 mm
da max. 16.9 mm
Da max. 26 mm
ra max. 0.3 mm
Calculation data
Basic dynamic load rating C   5.4 kN
Basic static load rating C0   2.36 kN
Fatigue load limit Pu   0.1 kN
Reference speed     60000 r/min
Limiting speed     30000 r/min
Calculation factor kr   0.025
Calculation factor f0   13
Mass
Mass bearing     0.022 kg
