23084CA/W33 spherical roller bearing with cylindrical bore
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.

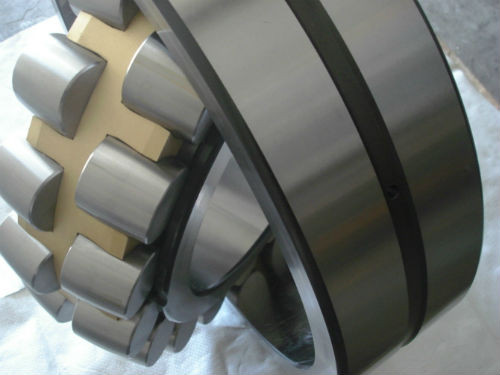

x23084CA/W33 spherical roller bearing,double row rollers,cylindrical bore,pressed steel cage
Dimensions (metric)/mm | d | 420 |
D | 620 | |
B | 150 | |
Dynamic Loading(kN) | 2990 | |
Stactic Loading(kN) | 6000 | |
Approx. Wgt. kg | 155 | |
Bearing with tapered bore | 23084CAK/W33 | |
Bearing on an adapter sleeve | 23084CAK/W33+OH3084H | |
Chamfer | Black & Light | |
Raw Material(Inner&outer ring) | Bearing Steel GCR15&GCR15SIMN | |
Cage Material | Mahined Brass | |
Cage Style | CC;CA;MB;E |
Tapered Bore-1:30
This series is available in tapered bore - suffix "K" (taper 1:12).
1) Suffix "W/33" - lubrication groove and holes in outer ring.
2) C/3, C/4, and C/5 internal clearances are also available.
Bearing of this type has two rows of spherical rollers between the sphered raceway in the outer ring and two inner rings raceways inclined at an angle to the bearing axis.According to the difference of the bearing internal structure, there are five types of cages:CA,MA,CC,E and CTN1.Due to the arc center of the raceways in the ourter ring and the bearing center are in the same direction, as a result, shaft flexing and misalignment of the bearing seats are compensated. Bearings of this type can support axial forces in both directions and high radial forces. They are designed for very high load carrying capacity. Bearings with a tapered bore are also available with an adapter sleeve, locknut and tab washer or with a withdrawal sleeve.When shaft bends by force which causes the inclined between the center of inner ring and the center of outer ring,if the inclined degree not exceed 1-2.5,the bearing can work normally.
Industry Solutions:
Metallurgy Rolling Mill
Oil Drilling Cement
Bearing No. | Dimensions (Metric) | Approx. | Interchange | |||||
d | D | B | Wgt. lbs | FAG | Torrington | Torrington (Old No.) | ||
24015 | 75 | 115 | 40 | 3.4 | - | 24015 CC | - | - |
24020 | 100 | 150 | 50 | 6.9 | - | - | - | - |
24022 | 110 | 170 | 60 | 11.177 | - | - | - | - |
24024 | 120 | 180 | 60 | 12 | 24024 S.MB | 24024 CC | 24024 | - |
24026 | 130 | 200 | 69 | 17.5 | 24026 S.MB | 24026 CC | 24026 | - |
24028 | 140 | 210 | 69 | 19 | 24028 S.MB | 24028 CC | 24028 | - |
24030 | 150 | 225 | 75 | 23 | 24030 S.MB | 24030 CC | 24030 | - |
24032 | 160 | 240 | 80 | 28.5 | 24032 S.MB | 24032 CC | 24032 | - |
24034 | 170 | 260 | 90 | 38.5 | 24034 BS.MB | 24034 CC | 24034 | - |
24036 | 180 | 280 | 100 | 50.5 | 24036 BS.MB | 24036 CC | 24036 | 180 SD 40 |
24038 | 190 | 290 | 100 | 53 | 24038 BS.MB | 24038 CC | 24038 | 190 SD 40 |
24040 | 200 | 310 | 109 | 67.5 | 24040 BS.MB | 24040 CC | 24040 | 200 SD 40 |
24044 | 220 | 340 | 118 | 87 | 24044 B.MB | 24044 CC | 24044 | 220 SD 40 |
24048 | 240 | 360 | 118 | 93.5 | 24048 B.MB | 24048 CC | 24048 | 240 SD 40 |
24052 | 260 | 400 | 140 | 140 | 24052 B.MB | 24052 CC | 24052 | 260 SD 40 |
24056 | 280 | 420 | 140 | 150 | 24056 B.MB | 24056 CC | 24056 | 280 SD 40 |
24060 | 300 | 460 | 160 | 215 | 24060 B.MB | 24060 CC | 24060 | 300 SD 40 |
24064 | 320 | 480 | 160 | 220 | 24064 B.MB | 24064 C | 24064 | 320 SD 40 |
24068 | 340 | 520 | 180 | 310 | 24068 B.MB | 24068 CA | 24068 | 340 SD 40 |
24072 | 360 | 540 | 180 | 320 | 24072 B.MB | 24072 CC | 24072 | 360 SD 40 |
24076 | 380 | 560 | 180 | 330 | 24076 B.MB | 24076 CA | 24076 | 380 SD 40 |
24080 | 400 | 600 | 200 | 450 | 24080 B.MB | 24080 CA | 24080 | 400 SD 40 |
24084 | 420 | 620 | 200 | 475 | 24084 B.MB | 24084 CA | 24084 | 420 SD 40 |
24088 | 440 | 650 | 212 | 495 | 24088 B.MB | 24088 CA | 24088 | 440 SD 40 |
24092 | 460 | 680 | 218 | 630 | 24092 B.MB | 24092 CA | 24092 | 460 SD 40 |
24096 | 480 | 700 | 218 | 660 | 24096 B.MB | 24096 CA | 24096 | 480 SD 40 |
240/500 | 500 | 720 | 218 | 675 | 240/500 B.MB | 240/500 CA | 240/500 | 500 SD 40 |
240/530 | 530 | 780 | 250 | 935 | 240/530 B.MB | 240/530 CA | 240/530 | 530 SD 40 |
240/560 | 560 | 820 | 258 | 1050 | 240/560 B.MB | 240/560 CA | 240/560 | 560 SD 40 |
240/600 | 600 | 870 | 272 | 1250 | 240/600 B.MB | 240/600 CA | 240/600 | 600 SD 40 |
240/630 | 630 | 920 | 290 | 1500 | 240/630 B.MB | 240/630 CAB | 240/630 | 630 SD 40 |
240/670 | 670 | 980 | 308 | 1800 | - | 240/670 CAB | 240/670 | 670 SD 40 |
240/710 | 710 | 1030 | 315 | 2000 | - | 240/710 CA | 240/710 | 710 SD 40 |
240/750 | 750 | 1090 | 335 | 2450 | - | 240/750 CA | 240/750 | 750 SD 40 |
240/800 | 800 | 1150 | 345 | 2645 | 240/800 | 240/800 CA | 240/800 | 800 SD 40 |
240/850 | 850 | 1220 | 365 | 3153 | 240/850 | 240/850 CA | 240/850 | 850 SD 40 |
240/900 | 900 | 1280 | 375 | 3527 | - | 240/900 | 240/900 | 900 SD 40 |
240/950 | 950 | 1360 | 412 | 4453 | - | 240/950 | 240/950 | 950 SD 40 |
240/1000 | 1000 | 1420 | 412 | 4740 | - | 240/1000 | 240/1000 | 1000 SD 40 |
240/1060 | 1060 | 1500 | 438 | 5600 | - | 240/1060 | 240/1060 | 1060 SD 40 |
240/1120 | 1120 | 1580 | 462 | 6415 | - | 240/1120 | 240/1120 | 1120 SD 40 |
240/1180 | 1180 | 1660 | 475 | 7275 | - | - | 240/1180 | 1180 SD 40 |
240/1250 | 1250 | 1750 | 500 | 8399 | - | - | 240/1250 | 1250 SD 40 |
240/1320 | 1320 | 1850 | 530 | 10031 | - | - | - | - |
240/1400 | 1400 | 1950 | 545 | 11398 | - | - | - | - |
