61844 Open style ball bearing with brass cage
Place of Origin | China |
---|---|
Brand Name | Neutral or OEM |
Certification | ISO9001 |
Model Number | 61844 |
Minimum Order Quantity | 1 |
Packaging Details | Industrial packing or customer's request |
Delivery Time | 3 days in stock;within 20days custom made |
Payment Terms | T/T;Western Union;Paypal;L/C |
Supply Ability | 30000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPrecision Rating | P0;P6;P5;P4;P2 | Seals Type | Open |
---|---|---|---|
Number Of Row | Single Row |

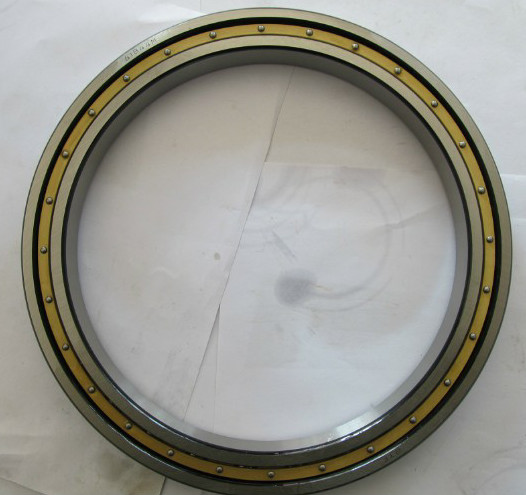

61844 Open style ball bearing with brass cage
Product Attributes:
Open or Shielded: | Open | |
Structure: | Deep Groove | |
Bearing Model | 61844 | |
Old Code: | 1000844 | |
Width(mm): | 24 | |
Bore Dia(mm): | 220 | |
Outer Dia(mm): | 270 | |
Weight(kg): | 3.2 | |
Raw Material(Rings): | Chrome Steel GCR15 | |
Cage Material: | Solid Brass | |
Chamfer: | Black or Light |
The tolerance for the boundary dimensions and running accuracy of deep groove ball bearing is divided into five grades according GB/T307.1-94 equivalent to relevant grades of ISO492, DIN620,JIS B1514 and ANSI/AFBMSTD20.
Standards | Accuracy class | ||||
GB/T307.1-94 | 0 | 6 | 5 | 4 | 2 |
JIS B1514 | Class0 | Class6 | Class5 | Class4 | Class2 |
ISO492 | Normal Class | Class6 | Class5 | Class4 | Class2 |
DIN620 | P0 | P6 | P5 | P4 | P2 |
AISI/AFBMA STD20 | ABEC-1 | ABEC-3 | ABEC-5 | ABEC-7 | ABEC-9 |
