61836M Thin-wall deep groove ball bearing

I'm Online Chat Now

61836M Thin-wall deep groove ball bearing

China 61836M Thin-wall deep groove ball bearing supplier

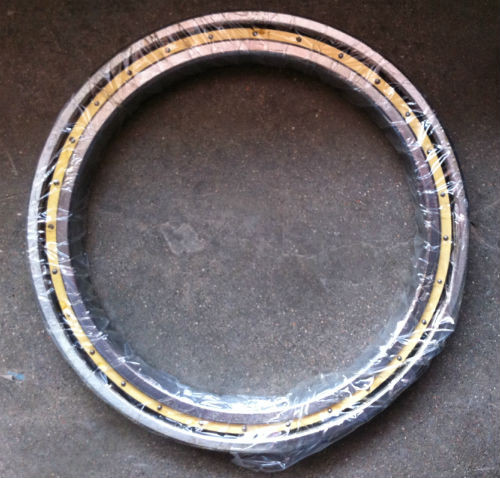

Large Image :  61836M Thin-wall deep groove ball bearing

Product Details:

Place of Origin: China
Model Number: 61836M

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: $20.00
Packaging Details: Industrial
Delivery Time: 3-5 days for stocks;within 15 days by order manufacturing
Payment Terms: T/T;Western Union;Paypal
Contact Now
Detailed Product Description
Precision Rating: P0;P6;P5;P4;P2 Seals Type: None
Number Of Row: Single Row



61836M Open style ball bearing with brass cage

Product Attributes:

Open or Shielded:   Open
Structure:   Deep Groove
Bearing Model   61836M
Old Code:   1000836
Width(mm):   22
Bore Dia(mm):   180
Outer Dia(mm):   225
Weight(kg):   2
Raw Material(Rings):   Chrome Steel GCR15
Cage Material:   Solid Brass
Chamfer:   Black or Light

61836M Thin-wall deep groove ball bearing

The tolerance for the boundary dimensions and running accuracy of deep groove ball bearing is divided into five grades according GB/T307.1-94 equivalent to relevant grades of ISO492, DIN620,JIS B1514 and ANSI/AFBMSTD20.

Standards Accuracy class
GB/T307.1-94 0 6 5 4 2
JIS B1514 Class0 Class6 Class5 Class4 Class2
ISO492 Normal Class Class6 Class5 Class4 Class2
DIN620 P0 P6 P5 P4 P2
AISI/AFBMA STD20 ABEC-1 ABEC-3 ABEC-5 ABEC-7 ABEC-9
