61848M Thin-wall deep groove ball bearing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.

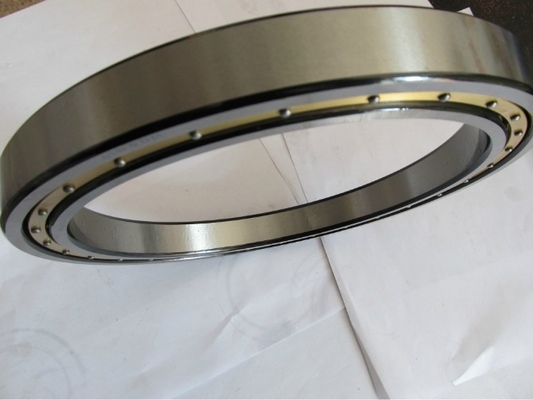

x61848M Open style ball bearing with brass cage
Product Attributes:
Open or Shielded: | Open | |
Structure: | Deep Groove | |
Bearing Model | 61848M | |
Old Code: | 1000848 | |
Width(mm): | 28 | |
Bore Dia(mm): | 240 | |
Outer Dia(mm): | 300 | |
Weight(kg): | 4.5 | |
Raw Material(Rings): | Chrome Steel GCR15 | |
Cage Material: | Solid Brass | |
Chamfer: | Black or Light |
The tolerance for the boundary dimensions and running accuracy of deep groove ball bearing is divided into five grades according GB/T307.1-94 equivalent to relevant grades of ISO492, DIN620,JIS B1514 and ANSI/AFBMSTD20.
Standards | Accuracy class | ||||
GB/T307.1-94 | 0 | 6 | 5 | 4 | 2 |
JIS B1514 | Class0 | Class6 | Class5 | Class4 | Class2 |
ISO492 | Normal Class | Class6 | Class5 | Class4 | Class2 |
DIN620 | P0 | P6 | P5 | P4 | P2 |
AISI/AFBMA STD20 | ABEC-1 | ABEC-3 | ABEC-5 | ABEC-7 | ABEC-9 |
