61860M Thin-wall deep groove ball bearing

Place of Origin China
Model Number 61860M
Minimum Order Quantity 1 pcs
Price $55.00
Packaging Details Industrial
Delivery Time 3-5 days for stocks;within 15 days by order manufacturing
Payment Terms T/T;Western Union;Paypal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Leave a Message
Product Description

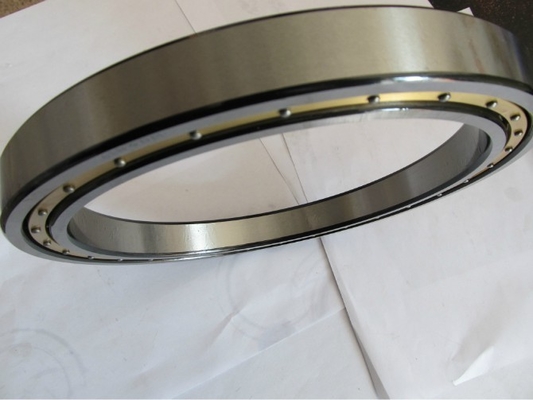

61860M Open style ball bearing with brass cage

Product Attributes:

Open or Shielded:   Open
Structure:   Deep Groove
Bearing Model   61860M
Old Code:   1000860
Width(mm):   38
Bore Dia(mm):   300
Outer Dia(mm):   380
Weight(kg):   11
Raw Material(Rings):   Chrome Steel GCR15
Cage Material:   Solid Brass
Chamfer:   Black or Light

61860M Thin-wall deep groove ball bearing 0

The tolerance for the boundary dimensions and running accuracy of deep groove ball bearing is divided into five grades according GB/T307.1-94 equivalent to relevant grades of ISO492, DIN620,JIS B1514 and ANSI/AFBMSTD20.

Standards Accuracy class
GB/T307.1-94 0 6 5 4 2
JIS B1514 Class0 Class6 Class5 Class4 Class2
ISO492 Normal Class Class6 Class5 Class4 Class2
DIN620 P0 P6 P5 P4 P2
