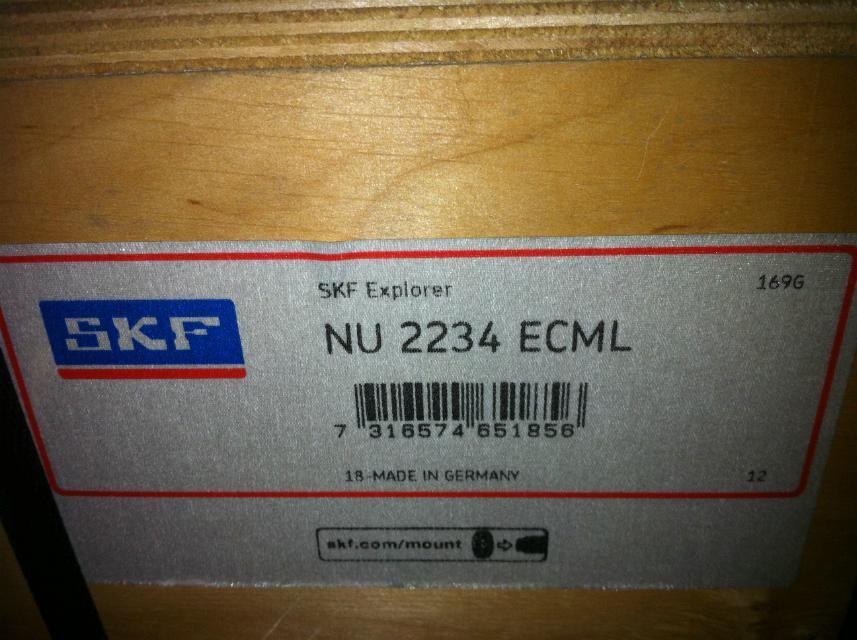

cylindrical roller bearing,single row,NU2234 ECML

  • cylindrical roller bearing,single row,NU2234 ECML
Place of Origin Germany
Model Number NU2234ECNL
Minimum Order Quantity 1 set
Price ASK
Packaging Details Original
Delivery Time 2-3 working days
Payment Terms T/T;Western Union;Paypal

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Precision Rating Normal Seals Type None
Number Of Row Single Row
Leave a Message
Product Description

NU 2234 ECML

cylindrical roller bearing,single row,NU2234 ECML 0Dimensions:

d   170 mm
D   310 mm
B   86 mm
D1 ≈ 269.9 mm
F   205 mm
r1,2 min. 4 mm
r3,4 min. 4 mm
s   4.2 mm



cylindrical roller bearing,single row,NU2234 ECML 1Abutment dimensions



da min. 187 mm
da max. 201 mm
db min. 208 mm
Da max. 292.4 mm
ra max. 3 mm
rb max. 3 mm



Calculation data
Basic dynamic load rating C   1060 kN
Basic static load rating C0   1340 kN
Fatigue load limit Pu   140 kN
Reference speed     2200 r/min
Limiting speed     3800 r/min
Calculation factor kr   0.3
Mass
Mass bearing     28.13 kg
Appropriate products
Angle ring
