TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb).

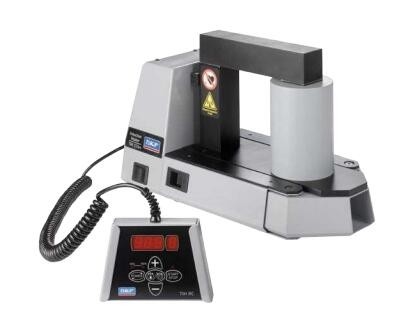

Large Image : TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb).

Product Details:

Place of Origin:	HOLLAND
Model Number:	TIH 030m

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1-2205/SET
Packaging Details:	Original
Delivery Time:	1-3 working days
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Max. Bearing Weight:	40 Kg (88 Lb)	Voltage 1:	200–240 V/50–60 Hz/TIH 030m/230 V
Temperature Control:	20 To 250 °C (68 To 482 °F)	Time Control (minutes):	0–60
Max. Heating Temperature 2):	250 °C (482 °F)	Voltage 2:	100–120 V/50–60 Hz/TIH 030m/110 V

TIH 030m induction heaters

Making heat mounting easier for bearings

TIH 030m induction heater,allowing the heating of bearings weighing up to 40 kg (88 lb).

The bigger the bearing, the bigger the force needed to mount it. To compensate, induction heating has been a worldwide best practice for many bearing-mounting operations, notably cylindrical shafts and bearings that cannot be pressed easily onto a shaft or into a housing.

If heating is uneven, or if overheating occurs, the bearing could be altered metallurgically and dimensionally, possibly shortening the bearing service life. The Induction Heater TIH 030m can help. This proven unit delivers reliable, efficient heat according to pre-set, time-controlled levels.

Heat bearings safely

Featuring advanced power electronics, the induction heater TIH 030m can heat bearings up to 40 kg (88 lbs).

TIH series induction coils are positioned outside the heater's housing, enabling the bearing to be placed around the heater. It’s a significant innovation that helps reduce heating time and power consumption. Using TIH induction heaters also reduces mounting time and efforts and eliminates the risk of contamination often encountered when using oil baths.

Features and benefits

Compact lightweight design; just 20,9 kg (46.0 lb) facilitating portability
2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes
Temperature mode pre-set at 110 °C (230 °F) to help prevent bearing over-heating
Automatic demagnetisation
