TMMP3X300 standard jaw pullers,versatile two and three arm mechanical pullers

TMMP3X300 standard jaw pullers,versatile two and three arm mechanical pullers

China  TMMP3X300 standard jaw pullers,versatile two and three arm mechanical pullers supplier
 TMMP3X300 standard jaw pullers,versatile two and three arm mechanical pullers supplier  TMMP3X300 standard jaw pullers,versatile two and three arm mechanical pullers supplier

Large Image :  TMMP3X300 standard jaw pullers,versatile two and three arm mechanical pullers

Product Details:

Place of Origin: Hungary
Model Number: TMMP3X300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1-530 per set
Packaging Details: Original
Delivery Time: 1-2 days for ready goods
Payment Terms: T/T, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description

Standard jaw pullers

Versatile two and three arm mechanical pullers

Standard jaw pullers TMMP series
 jaw pullers

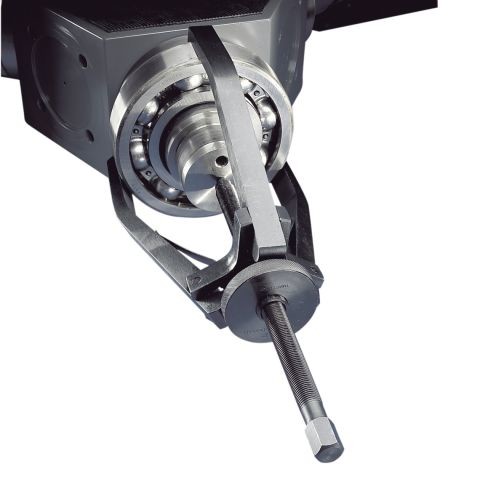

One of the easiest and most effective ways to dismount small to medium size bearings is to use a mechanical puller. Using an jaw puller helps ensure that no damage is caused to the bearing or to the bearing seating during dismounting. standard jaw pullers offer you easy and safe jaw puller operation.

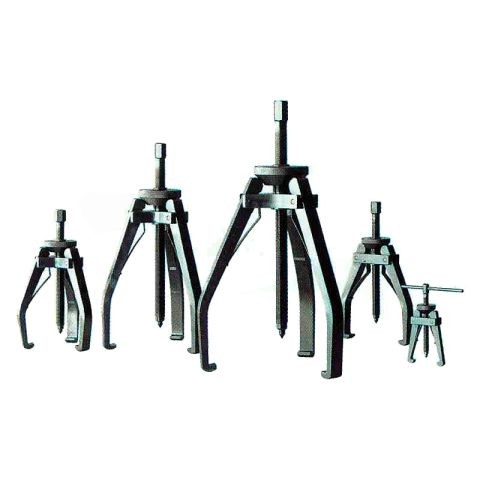

  • Range of five different jaw pullers with two or three arms
  • Maximum nominal span from 65 to 300 mm (2.6 to 11.8 in.)
  • Cone system for automatic centring and secure positioning of arms
  • Strong springs to keep arms apart for easy operation
  • Hardened, high quality carbon steel
Technical data (metric)
Designation No.
of
arms
Width
of grip
Effective
length
of arms
Max.
with-
drawal
force
Weight
  qty mm mm kN kg
TMMP 2x65 2 65 60 6,0 0,4
TMMP 2x170 2 170 135 18,0 1,9
TMMP 3x185 3 185 135 24,0 2,5
TMMP 3x230 3 230 210 34,0 5,5
TMMP 3x300 3 300 240 50,0 9,0
Technical data (imperial)
Designation No.
of
arms
Width
of grip
Effective
length
of arms
Max.
with-
drawal
force
Weight
  qty in in lbf lb
TMMP 2x65 2 2.6 2.4 1,340 0.9
TMMP 2x170 2 6.7 5.3 4,030 4.2
TMMP 3x185 3 7.3 5.3 5,380 5.5
TMMP 3x230 3 9.1 8.3 7,610 12
TMMP 3x300 3 11.8 9.4 11,200 20
