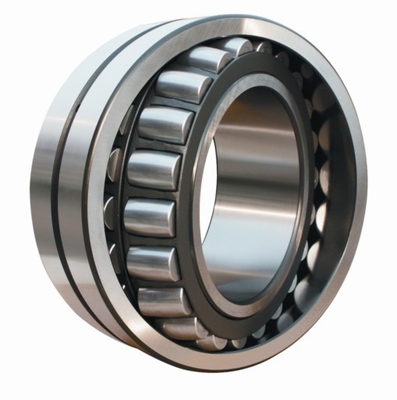

Datasheet: Spherical Roller Bearing 22240CC/C3W33
|
Dimensions (metric)/mm |
d |
200 |
|
D |
360 |
|
B |
98 |
|
Limiting Speed(r/min) |
2200 |
|
Approx. Wgt. kg |
43.5 |
|
Bearing with tapered bore |
22240CCK/W33 |
|
Bearing on an adapter sleeve |
22240CCK/W33+H3140 |
|
Raw Material(Inner&outer ring) |
Bearing Steel GCR15 |
|
Cage Material |
Steel |
|
Cage Style |
CC;CA;MB |
Tapered Bore-1:12
This series is available in tapered bore - suffix "K" (taper 1:12).
1) Suffix "W/33" - lubrication groove and holes in outer ring.
2) C/3, C/4, and C/5 internal clearances are also available.
Spherical Roller Bearings
1) Series: 21300 series, 22200 series, 22300 series, 23100 series, 23200series,
24000 series, 24100 series and 23900 series
2) Material of rings and rollers: chrome steel; GCr15 and GCr15SiMn
3) Material of cages: brass, steel and nylon
4) Precision: P0, P6
5) Suffixes:
a) CA: integral brass cage, double row symmetrical rollers, inner ring ride
b) MA: integral brass cage, double row symmetrical rollers, outer ring ride
c) MB: two piece brass cage, double row asymmetrical rollers, inner ring ride
d) CC: two piece steel cage, double row symmetrical rollers, inner ring ride
e) CTN1: double row symmetrical rollers, nylon cage
f) K: tapered bore bearing, the taper is 1:12
g) K30: tapered bore bearing, the taper is 1:30
h) W33: with lubrication groove in outer ring, with three oil holes
i) C2/C3/C4: Internal clearance series: C2, C0, C3, and C4
6) Application:
Used in agricultural machine such as combined harvesting machine, air-blower, paper-machine,
textile machine, woodworking machinery, overhead crane moving wheel and driving shaft
