Double row spherical roller bearings 24124 CC/W33

  • Double row spherical roller bearings 24124 CC/W33
  • Double row spherical roller bearings 24124 CC/W33
Place of Origin China
Model Number 24124CC/W33
Minimum Order Quantity 1
Price $40.00 or Negotiable
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 25 days for order manufacture
Payment Terms T/T;Western Union;Paypal;L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Datasheet: Spherical Roller Bearing 24124CC/W33

Dimensions (metric)/mm d 120
D 200
B 80
Limiting Speed(r/min) 2600
Approx. Wgt. kg 10.5
Bearing with tapered bore 24124CCK30W33
Raw Material(Inner&outer ring) Bearing Steel GCR15
Cage Material Pressed steel
Cage Style CC;CA;MB

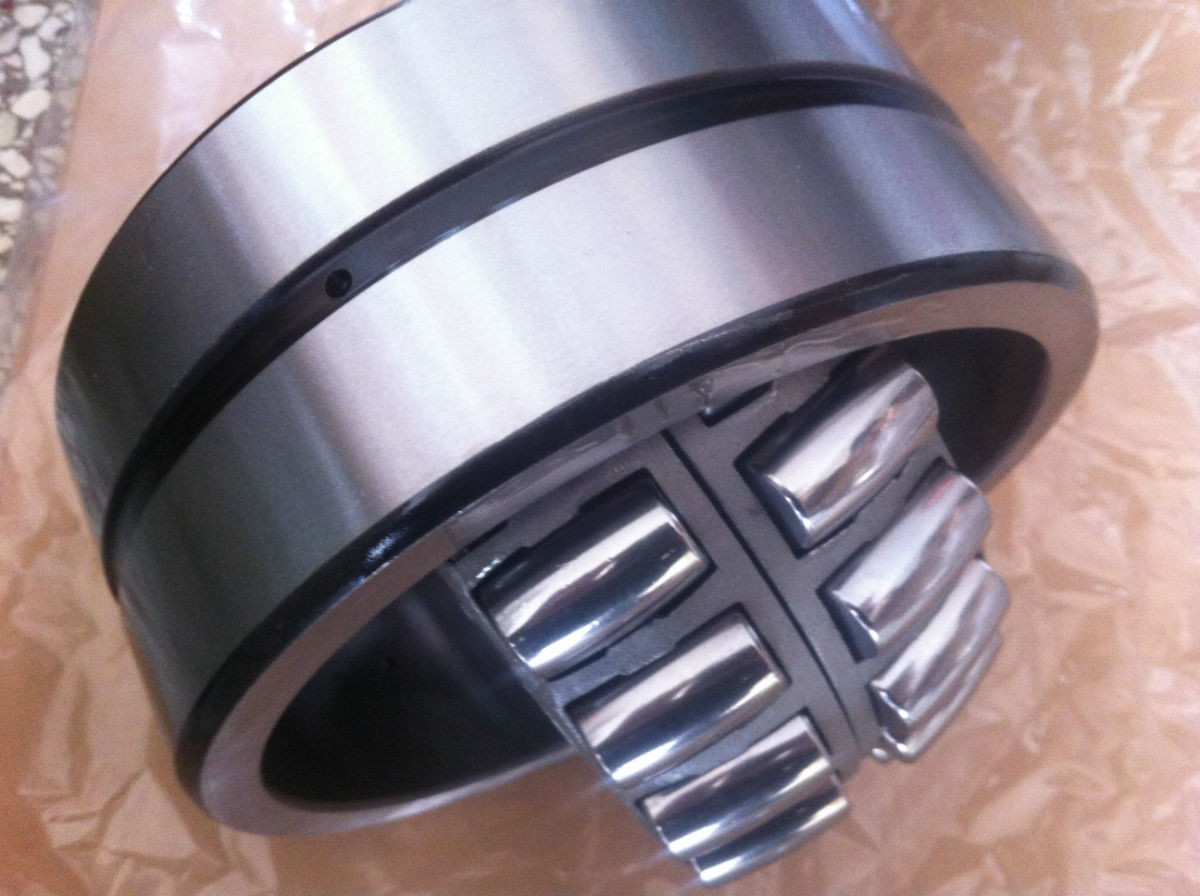

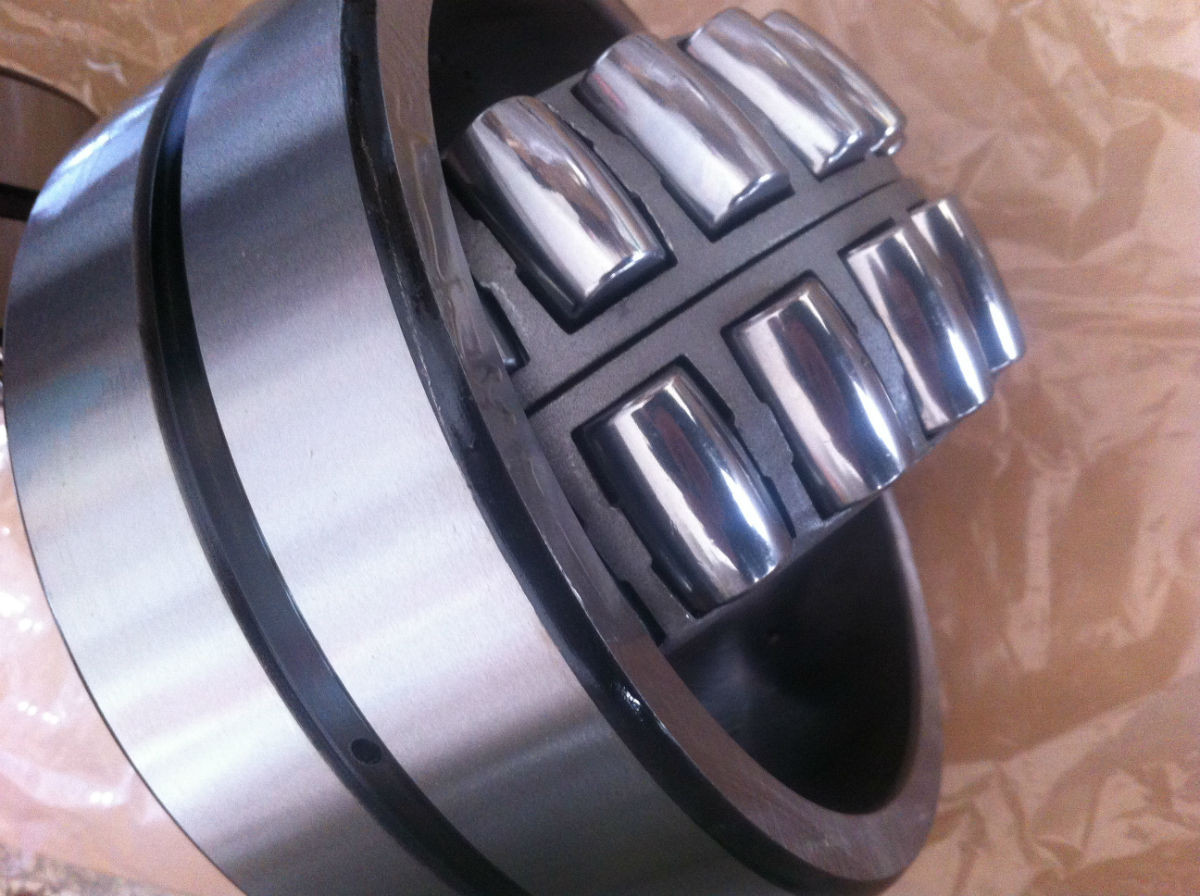

Double row spherical roller bearings 24124 CC/W33 0            Double row spherical roller bearings 24124 CC/W33 1               Double row spherical roller bearings 24124 CC/W33 2

      Tapered Bore-1:12

This series is available in tapered bore - suffix "K30" (taper 1:30).
1) Suffix "W/33" - lubrication groove and holes in outer ring.
2) C/3, C/4, and C/5 internal clearances are also available.

Spherical Roller Bearings
1) Series: 21300 series, 22200 series, 22300 series, 23100 series, 23200series,
24000 series, 24100 series and 23900 series
2) Material of rings and rollers: chrome steel; GCr15 and GCr15SiMn
3) Material of cages: brass, steel and nylon
4) Precision: P0, P6
5) Suffixes:
a) CA: integral brass cage, double row symmetrical rollers, inner ring ride
b) MA: integral brass cage, double row symmetrical rollers, outer ring ride
c) MB: two piece brass cage, double row asymmetrical rollers, inner ring ride
d) CC: two piece steel cage, double row symmetrical rollers, inner ring ride
e) CTN1: double row symmetrical rollers, nylon cage
f) K: tapered bore bearing, the taper is 1:12
g) K30: tapered bore bearing, the taper is 1:30
h) W33: with lubrication groove in outer ring, with three oil holes
i) C2/C3/C4: Internal clearance series: C2, C0, C3, and C4
6) Application:
Used in agricultural machine such as combined harvesting machine, air-blower, paper-machine,
textile machine, woodworking machinery, overhead crane moving wheel and driving shaft
