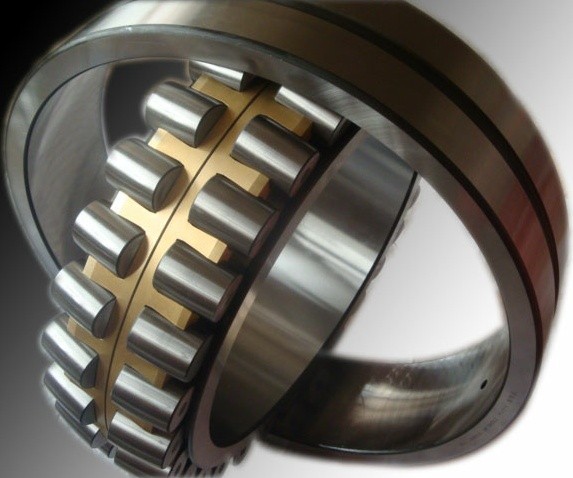

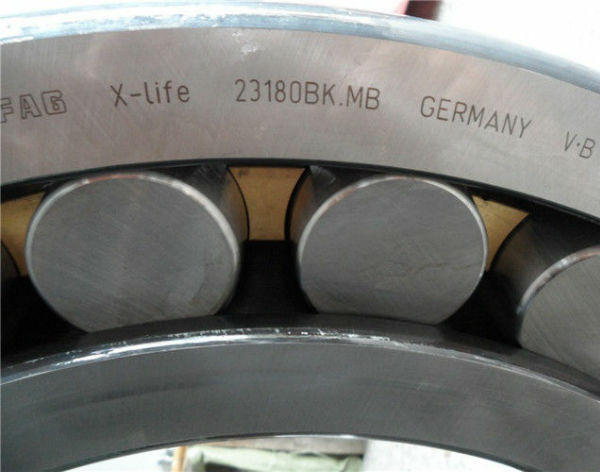

23180B.K.MB spherical roller bearing,double row rollers,tapered bore
23180B.K.MB Spherical Roller Bearing Details:
Dimensions (metric)/mm | d | 400 |
D | 650 | |
B | 200 | |
Limiting Speed(r/min) | 750 | |
Approx. Wgt. kg | 261 | |
Bearing with straight bore | 23180B.MB | |
Other brand available | FAG |
Tapered Bore-1:30
This series is available in tapered bore - suffix "K" (taper 1:12).
1) Suffix "W/33" - lubrication groove and holes in outer ring.
2) C/3, C/4, and C/5 internal clearances are also available.
The bearing 23180B.K.MB,including rings(outer&inner) and rolling elements are all chrome steel.Raceways of outer ring and inner ring are super-finished to improve the precision and better rolling.Depending on your requirements,we can supply different grades of bearings.we promise you will buy the bearings in the lowest price.
