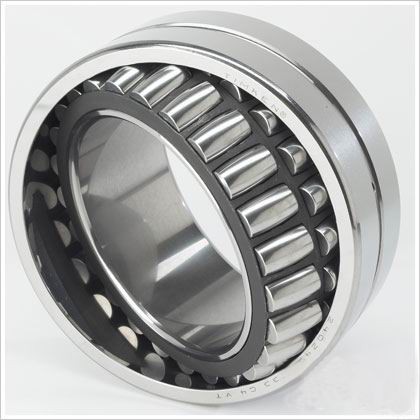

24156 CC/W33 China manufacturer large spherical roller bearing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x24156 CC/W33 spherical roller bearing,double row rollers,cylindrical bore,pressed steel cage
Dimensions (metric)/mm | d | 280 |
D | 460 | |
B | 180 | |
Limiting Speed(r/min) | 900 | |
Approx. Wgt. kg | 120 | |
Interchange | FAG | 24156 B |
24156 CC | ||
Torrington | 24156 | |
Torrington (Old No.) | 280 SD 41 | |
Bearing with tapered bore | 24156CCK30/W33 | |
Bearing on a withdrawal sleeve | 24156CCK30/W33+AOH24156 | |
Chamfer | Black & Light | |
Raw Material(Inner&outer ring) | Bearing Steel GCR15&GCR15SIMN | |
Cage Material | Pressed Steel | |
Cage Style | CC;CA;MB |
Tapered Bore-1:30
This series is available in tapered bore - suffix "K30" (taper 1:30).
1) Suffix "W/33" - lubrication groove and holes in outer ring.
2) C/3, C/4, and C/5 internal clearances are also available.
Bearing No. | Dimensions (Metric) | Approx. | Interchange | |||||
d | D | B | Wgt. lbs | FAG | Torrington | Torrington (Old No.) | ||
24118 | 90 | 150 | 60 | 9.17 | - | - | - | - |
24120 | 100 | 165 | 65 | 12.25 | - | 24120 CC | - | - |
24122 | 110 | 180 | 69 | 15 | 24122 ES.TVPB | 24122 CC | 24122 | - |
24124 | 120 | 200 | 80 | 22 | 24124 ES.TVPB | 24124 CC | 24124 | - |
24126 | 130 | 210 | 80 | 24.5 | 24126 ES.TVPB | 24126 CC | 24126 | - |
24128 | 140 | 225 | 85 | 28.5 | 24128 ES.TVPB | 24128 CC | 24128 | 140 SD 41 |
24130 | 150 | 250 | 100 | 43 | 24130 BS | 24130 CC | 24130 | 150 SD 41 |
24132 | 160 | 270 | 109 | 55 | 24132 BS | 24132 CC | 24132 | 160 SD 41 |
24134 | 170 | 280 | 109 | 58.5 | 24134 BS | 24134 CC | 24134 | 170 SD 41 |
24136 | 180 | 300 | 118 | 74 | 24136 BS | 24136 CC | 24136 | 180 SD 41 |
24138 | 190 | 320 | 128 | 92.5 | 24138 B | 24138 CC | 24138 | 190 SD 41 |
24140 | 200 | 340 | 140 | 115 | 24140 B | 24140 CC | 24140 | 200 SD 41 |
24144 | 220 | 370 | 150 | 145 | 24144 B | 24144 CC | 24144 | 220 SD 41 |
24148 | 240 | 400 | 160 | 180 | 24148 B | 24148 CC | 24148 | 240 SD 41 |
24152 | 260 | 440 | 180 | 245 | 24152 B | 24152 CC | 24152 | 260 SD 41 |
24156 | 280 | 460 | 180 | 265 | 24156 B | 24156 CC | 24156 | 280 SD 41 |
24160 | 300 | 500 | 200 | 340 | 24160 B | 24160 CC | 24160 | 300 SD 41 |
24164 | 320 | 540 | 218 | 475 | 24164 B | 24164 CA | 24164 | 320 SD 41 |
24168 | 340 | 580 | 243 | 615 | 24168 B | 24168 CABC | 24168 | 340 SD 41 |
24172 | 360 | 600 | 243 | 640 | 24172 B | 24172 CABC | 24172 | 360 SD 41 |
24176 | 380 | 620 | 243 | 675 | 24176 B | 24176 CAB | 24176 | 380 SD 41 |
24180 | 400 | 650 | 250 | 750 | 24180 B | 24180 CA | 24180 | 400 SD 41 |
24184 | 420 | 700 | 280 | 1000 | 24184 B | 24184 CA | 24184 | 420 SD 41 |
24188 | 440 | 720 | 280 | 1050 | 24188 B | 24188 CAB | 24188 | 440 SD 41 |
24192 | 460 | 760 | 300 | 1250 | 24192 B.MB | 24192 CAB | 24192 | 460 SD 41 |
24196 | 480 | 790 | 308 | 1400 | - | 24196 CA | 24196 | 480 SD 41 |
241/500 | 500 | 830 | 325 | 1650 | 241/500 B.MB | 241/500 CAB | 241/500 | 500 SD 41 |
241/530 | 530 | 870 | 335 | 1850 | - | 241/530 CAB | 241/530 | 530 SD 41 |
241/560 | 560 | 920 | 355 | 2150 | - | 241/560 CAB | 241/560 | 560 SD 41 |
241/600 | 600 | 980 | 375 | 2550 | 241/600 B.MB | 241/600 CAB | 241/600 | 600 SD 41 |
241/630 | 630 | 1030 | 400 | 3100 | - | 241/630 CAB | 241/630 | 630 SD 41 |
241/670 | 670 | 1090 | 412 | 3550 | - | 241/670 CAB | 241/670 | 670 SD 41 |
241/710 | 710 | 1150 | 438 | 4189 | 241/710 | 241/710 CA | 241/710 | 710 SD 41 |
241/750 | 750 | 1220 | 475 | 5159 | - | 241/750 | 241/750 | 750 SD 41 |
241/800 | 800 | 1280 | 475 | 5555 | - | 241/800 | 241/800 | 800 SD 41 |
241/850 | 850 | 1360 | 500 | 6548 | - | 241/850 | - | - |
241/900 | 900 | 1420 | 515 | 7231 | - | 241/900 | 241/900 | - |
241/950 | 950 | 1500 | 545 | 8399 | - | 241/950 | 241/950 | - |
241/1000 | 1000 | 1580 | 580 | 9417.6 | - | - | 241/1000 | - |
