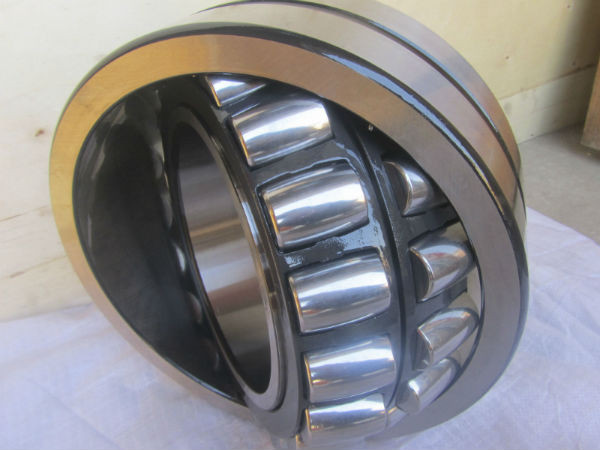

24020CC/W33 spherical roller bearing with cylindrical bore

Place of Origin China
Certification ISO9001
Model Number 24020CC/W33
Minimum Order Quantity 1
Price US$25 or Negotiable
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 25 days for order manufacture
Payment Terms T/T;Western Union;Paypal;L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

24020/W33 spherical roller bearing,double row rollers,cylindrical bore,pressed steel cage

Spherical Roller Bearing

Dimensions (metric)/mm d 100
D 150
B 50
Limiting Speed(r/min) 2600
Approx. Wgt. kg 3.2
Bearing with tapered bore 24020CCK30/W33
Bearing on an adapter sleeve
Chamfer Black & Light
Raw Material(Inner&outer ring) Bearing Steel GCR15&GCR15SIMN
Cage Material Brass
Cage Style CC;CA;MB;E

24020CC/W33 spherical roller bearing with cylindrical bore 0            24020CC/W33 spherical roller bearing with cylindrical bore 1               24020CC/W33 spherical roller bearing with cylindrical bore 2

      Tapered Bore-1:30

This series is available in tapered bore - suffix "K30" (taper 1:30).
1) Suffix "W/33" - lubrication groove and holes in outer ring.
2) C/3, C/4, and C/5 internal clearances are also available.

Bearing of this type has two rows of spherical rollers between the sphered raceway in the outer ring and two inner rings raceways inclined at an angle to the bearing axis.According to the difference of the bearing internal structure, there are five types of cages:CA,MA,CC,E and CTN1.Due to the arc center of the raceways in the ourter ring and the bearing center are in the same direction, as a result, shaft flexing and misalignment of the bearing seats are compensated. Bearings of this type  can support axial forces in both directions and high radial forces. They are designed for very high load carrying capacity. Bearings with a tapered bore are also available with an adapter sleeve, locknut and tab washer or with a withdrawal sleeve.When shaft bends by force which causes the inclined between the center of inner ring and the center of outer ring,if the inclined degree not exceed 1-2.5,the bearing can work normally.

Bearing No. Dimensions (Metric) Approx. Interchange
d D B Wgt. lbs FAG Torrington Torrington (Old No.)
24015 75 115 40 3.4 - 24015 CC - -
24020 100 150 50 6.9 - - - -
24022 110 170 60 11.177 - - - -
24024 120 180 60 12 24024 S.MB 24024 CC 24024 -
24026 130 200 69 17.5 24026 S.MB 24026 CC 24026 -
24028 140 210 69 19 24028 S.MB 24028 CC 24028 -
24030 150 225 75 23 24030 S.MB 24030 CC 24030 -
24032 160 240 80 28.5 24032 S.MB 24032 CC 24032 -
24034 170 260 90 38.5 24034 BS.MB 24034 CC 24034 -
24036 180 280 100 50.5 24036 BS.MB 24036 CC 24036 180 SD 40
24038 190 290 100 53 24038 BS.MB 24038 CC 24038 190 SD 40
24040 200 310 109 67.5 24040 BS.MB 24040 CC 24040 200 SD 40
24044 220 340 118 87 24044 B.MB 24044 CC 24044 220 SD 40
24048 240 360 118 93.5 24048 B.MB 24048 CC 24048 240 SD 40
24052 260 400 140 140 24052 B.MB 24052 CC 24052 260 SD 40
24056 280 420 140 150 24056 B.MB 24056 CC 24056 280 SD 40
24060 300 460 160 215 24060 B.MB 24060 CC 24060 300 SD 40
24064 320 480 160 220 24064 B.MB 24064 C 24064 320 SD 40
24068 340 520 180 310 24068 B.MB 24068 CA 24068 340 SD 40
24072 360 540 180 320 24072 B.MB 24072 CC 24072 360 SD 40
24076 380 560 180 330 24076 B.MB 24076 CA 24076 380 SD 40
24080 400 600 200 450 24080 B.MB 24080 CA 24080 400 SD 40
24084 420 620 200 475 24084 B.MB 24084 CA 24084 420 SD 40
24088 440 650 212 495 24088 B.MB 24088 CA 24088 440 SD 40
24092 460 680 218 630 24092 B.MB 24092 CA 24092 460 SD 40
24096 480 700 218 660 24096 B.MB 24096 CA 24096 480 SD 40
240/500 500 720 218 675 240/500 B.MB 240/500 CA 240/500 500 SD 40
240/530 530 780 250 935 240/530 B.MB 240/530 CA 240/530 530 SD 40
240/560 560 820 258 1050 240/560 B.MB 240/560 CA 240/560 560 SD 40
240/600 600 870 272 1250 240/600 B.MB 240/600 CA 240/600 600 SD 40
240/630 630 920 290 1500 240/630 B.MB 240/630 CAB 240/630 630 SD 40
240/670 670 980 308 1800 - 240/670 CAB 240/670 670 SD 40
240/710 710 1030 315 2000 - 240/710 CA 240/710 710 SD 40
240/750 750 1090 335 2450 - 240/750 CA 240/750 750 SD 40
240/800 800 1150 345 2645 240/800 240/800 CA 240/800 800 SD 40
240/850 850 1220 365 3153 240/850 240/850 CA 240/850 850 SD 40
240/900 900 1280 375 3527 - 240/900 240/900 900 SD 40
240/950 950 1360 412 4453 - 240/950 240/950 950 SD 40
240/1000 1000 1420 412 4740 - 240/1000 240/1000 1000 SD 40
240/1060 1060 1500 438 5600 - 240/1060 240/1060 1060 SD 40
240/1120 1120 1580 462 6415 - 240/1120 240/1120 1120 SD 40
240/1180 1180 1660 475 7275 - - 240/1180 1180 SD 40
240/1250 1250 1750 500 8399 - - 240/1250 1250 SD 40
240/1320 1320 1850 530 10031 - - - -
240/1400 1400 1950 545 11398 - - - -

Unide Bearing supply spherical roller bearing 24020CC/W33 with good price.we could supply this item in three cage types:23222CC,24020MB,24020CA.If you are demanding 24020CC/W33,please do not hesitate to contact us.we will supply laest price for you:unidebearing@yahoo.com
